JL Audio C2-650 Evolution C2 Series 6-1/2" 60W RMS Component Speaker System

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$459.99

SKU:: C2-650
UPC:: 699440996174
Condition:: New
Availability:: Special Order - Usually Ships in 3-5 Business Days
Shipping:: Calculated at Checkout

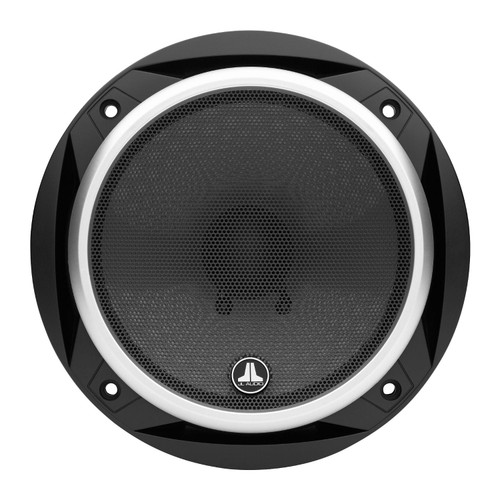

JL Audio C2-650 Evolution C2 Series 6-1/2" 60W RMS Component Speaker System

$459.99

Description
Shipping & Returns

Description

About: JL Audio C2-650 Evolution C2 Series 6-1/2" 60W RMS Component Speaker System

C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs. The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.

The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker. The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector. Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo. Sold as a pair.

Specifications:

Continuous Power Handling (RMS): 60 W
Recommended Amplifier Power (RMS): 15 - 100 W / Ch.
System Efficiency: 91.0 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 59 Hz - 22 KHz ± 3 dB

Woofer Physical Specifications:

Frame Outer Diameter*: 6.5 in / 165 mm
Grille Tray Outer Diameter: 6.84 in / 174 mm
Motor Outer Diameter: 3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion: N/A
Frontal Grille Protrusion**: 0.85 in / 22 mm
Mounting Hole Diameter: 5.56 in / 141 mm
Mounting Depth: 2.44 in / 62 mm
*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface

Tweeter Physical Specifications:

Flush Mount Fixture Diameter: 1.87 in / 48 mm
Surface Mount Fixture Diameter: 1.69 in / 43 mm
Flush Mount Mounting Hole Diameter: 1.625 in / 41 mm
Flush Mount Mounting Depth: 0.76 in / 19 mm
Flush Mount Tweeter Frontal Protrusion: 0.29 in / 7 mm
Surface Mount Tweeter Frontal Protrusion: 0.92 in / 23 mm

Crossover Physical Specifications:

Width (W): 3.36 in / 85 mm
Height (H): 1.44 in / 37 mm
Depth (D): 4.72 in / 120 mm

What's in the Box:

2 C2-650cw Woofers
2 C2-075ct Tweeters (with 6" wires attached)
2 C2-650-XO Crossovers
2 Grilles
2 Self-adhesive JL Audio badges
2 Flush mount tweeter housings
2 Surface mount tweeter housings
2 Metal spring clips for tweeter fixtures
2 M4x30mm Pan-head machine screws
2 Crimp-on 0.187" Male quick slides
2 Crimp-on 0.110" Male quick slides
2 Crimp-on 0.205" Female quick slides
2 Crimp-on 0.110" Female quick slides
Four 7/8" Flat head self-tapping screws
Twelve 1-1/8" Pan head self-tapping screws
8 Speed clips
12 Crimp-on spade connectors
Owner's Manual
Woofer cutout template
