JL Audio

JL Audio C3-600 Evolution C3 Series 6" 75W RMS Convertible Component Speaker System

$729.99
SKU:
C3-600
UPC:
699440990349
Condition:
New
Availability:
Special Order - Usually Ships in 3-5 Days
Shipping:
Calculated at Checkout
Out of stock

JL Audio C3-600 Evolution C3 Series 6" 75W RMS Convertible Component Speaker System

$729.99

Out of stock

About: JL Audio C3-600 Evolution C3 Series 6" 75W RMS Convertible Component Speaker System

2-Way Convertible Component / Coaxial System: 6-inch (150 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

The new C3-600 expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.

The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.

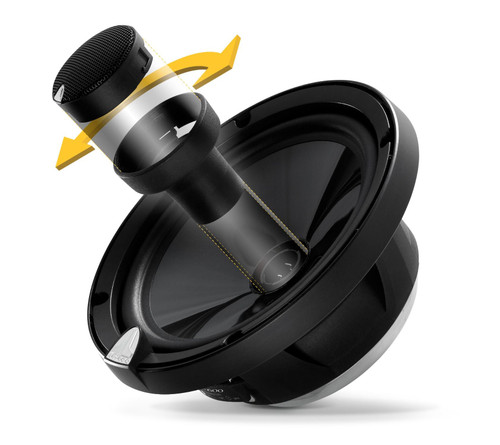

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold as a pair.

General Specifications:

  • Continuous Power Handling (RMS): 75 W
  • Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
  • System Efficiency: 89.5 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 50 Hz - 25 KHz ± 3 dB

Coaxial Physical Specifications:

  • Frame Outer Diameter: 6.21 in. / 157.7 mm
  • Grille Tray Outer Diameter: 6.46 in. / 164.1 mm
  • Motor Outer Diameter: 4.08 in. / 103.6 mm
  • Frontal Coaxial Tweeter Protrusion*: 0.81 in. / 20.6 mm
  • Frontal Grille Protrusion**: 1.03 in. / 26.2 mm
  • Mounting Hole Diameter: 5.00 in. / 127 mm
  • Mounting Depth: 2.49 in. / 63 mm
  • *Frontal coaxial tweeter protrusion measured from mounting surface
  • **Frontal grille protrusion measured from mounting surface

Tweeter Physical Specifications:

  • Flush Mount Fixture Diameter: 2.12 in / 54 mm
  • Surface Mount Fixture Diameter: 1.93 in / 49 mm
  • Flush Mount Mounting Hole Diameter: 1.875 in / 48 mm
  • Flush Mount Fixture Mounting Depth: 0.71 in / 18 mm
  • Flush Mount Tweeter Frontal Protrusion: 0.32 in / 8 mm
  • Surface Mount Tweeter Frontal Protrusion: 0.95 in / 24 mm

Features:

  • Component speaker system includes two 6" woofers, 2 tweeters, two external crossovers, and two woofer grilles
  • Mica-filled polypropylene woofer with butyl rubber surround
  • Glass-filled polymer frame with Elevated Frame Cooling
  • 1" silk dome tweeter
  • 2-way external crossover with adjustments for coaxial or separate tweeter placement, and 4-position tweeter level
  • Tweeter mounts for separate or coaxial installations included

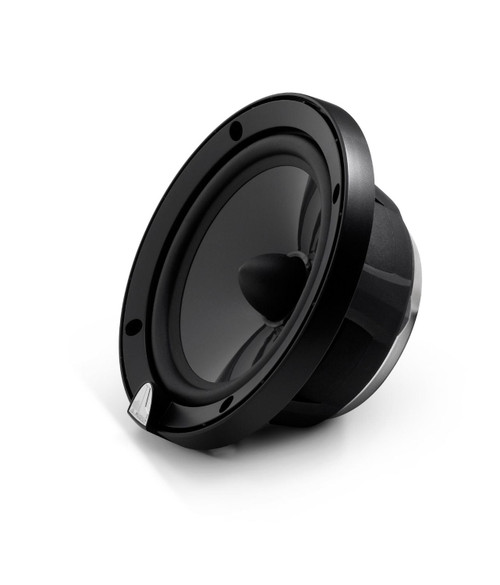

  • Phase plug provided when tweeter mounted separately
  • Handles up to 75 watts RMS (225 watts peak)
  • Frequency response: 50-25,000 Hz
  • Sensitivity: 89.5 dB
  • Depth: 2-1/2"
  • Grilles included

What's in the Box:

  • 2 C3-600cw Woofers
  • 2 C3-100ct Tweeters
  • 2 C3-600-XO Crossovers
  • 2 Woofer grilles
  • 2 Flush mount tweeter housings
  • 2 Surface mount tweeter housings
  • 2 Coaxial mount tweeter fixtures
  • 2 Metal spring clips for tweeter fixtures
  • Two M4x30mm Pan-head machine screws
  • 2 Crimp-on 0.187" Male quick slides
  • 2 Crimp-on 0.110" Male quick slides
  • 2 Crimp-on 0.25" Female quick slides
  • 2 Crimp-on 0.187" Female quick slides
  • 4 Crimp-on 0.110" Female quick slides
  • 12 Crimp-on spade connectors
  • Four 7/8" Flat head self-tapping screws
  • Twelve 1-1/8" Pan head self-tapping screws
  • 8 Speed clips
  • Owner's manual
  • Woofer cutout template
