About: JL Audio C3-650 Evolution C3 Series 6-1/2" 75W RMS Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

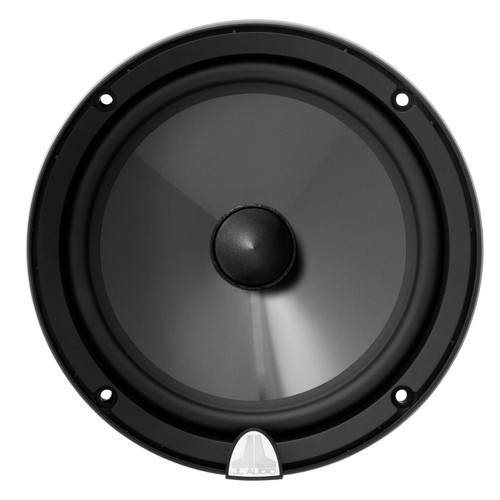

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.

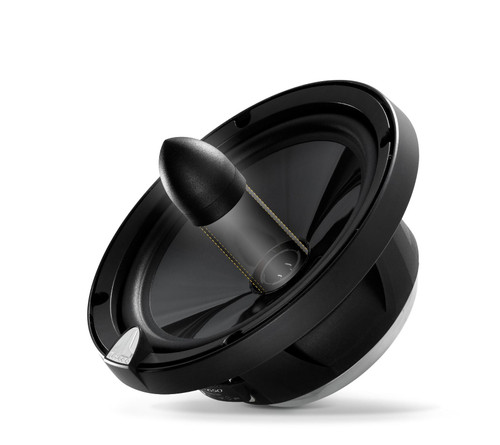

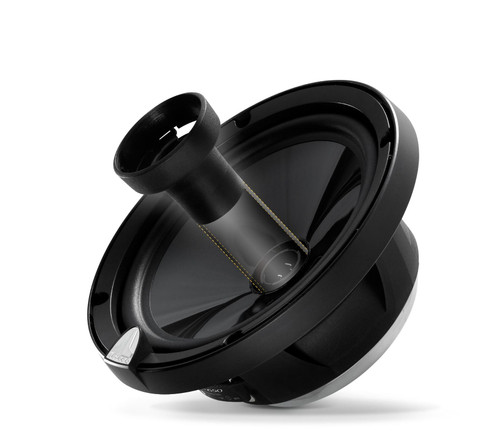

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

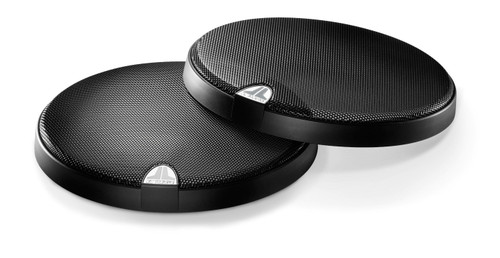

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. Sold as a pair.
Specifications:
- Continuous Power Handling (RMS): 75 W
- Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
- System Efficiency: 90.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 48 Hz - 25 KHz ± 3 dB
Coaxial Physical Specifications:
- Frame Outer Diameter: 6.50 in / 165 mm
- Grille Tray Outer Diameter: 6.74 in / 171 mm
- Motor Outer Diameter: 4.08 in / 104 mm
- Frontal Coaxial Tweeter Protrusion*: 0.75 in / 19 mm
- Frontal Grille Protrusion**: 1.03 in / 26 mm
- Mounting Hole Diameter: 5.56 in / 141 mm
- Mounting Depth: 2.55 in / 65 mm
- *Frontal coaxial tweeter protrusion measured from mounting surface
- **Frontal grille protrusion measured from mounting surface
