JL Audio C3-650cw 6-1/2" 75W RMS Convertible Component Woofer

$279.95

Description
Shipping & Returns

Description

About: JL Audio C3-650cw 6-1/2" 75W RMS Convertible Component Woofer

6.5-inch (165 mm) Convertible Component Woofer (Single)

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

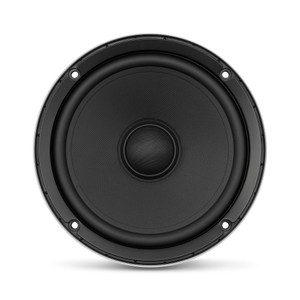

The C3-650cw is a 6.5-inch (165 mm) component woofer with an oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.

A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold individually.

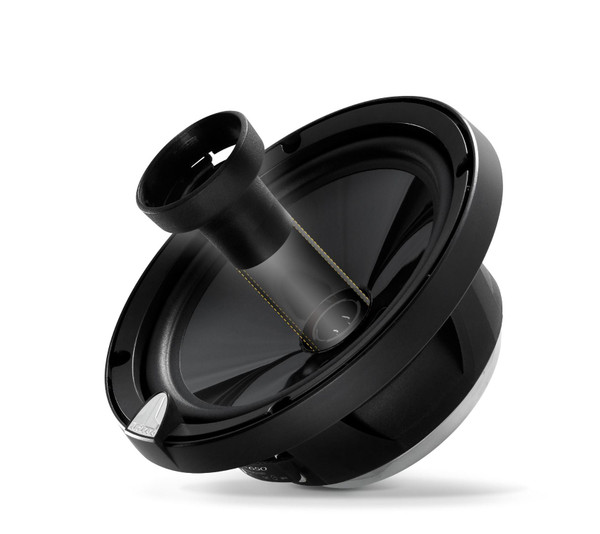

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).

General Specifications:

Continuous Power Handling (RMS): 75 W
Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
System Efficiency: 90.0 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 48 Hz - 25 KHz ± 3 dB

Woofer Physical Specifications:

Frame Outer Diameter: 6.50 in / 165 mm
Grille Tray Outer Diameter: 6.74 in / 171 mm
Motor Outer Diameter: 4.08 in / 104 mm
Frontal Coaxial Tweeter Protrusion*: 0.75 in / 19 mm
Frontal Grille Protrusion**: 1.03 in / 26 mm
Mounting Hole Diameter: 5.56 in / 141 mm
Mounting Depth: 2.55 in / 65 mm
*Frontal coaxial tweeter protrusion measured from mounting surface
**Frontal grille protrusion measured from mounting surface
