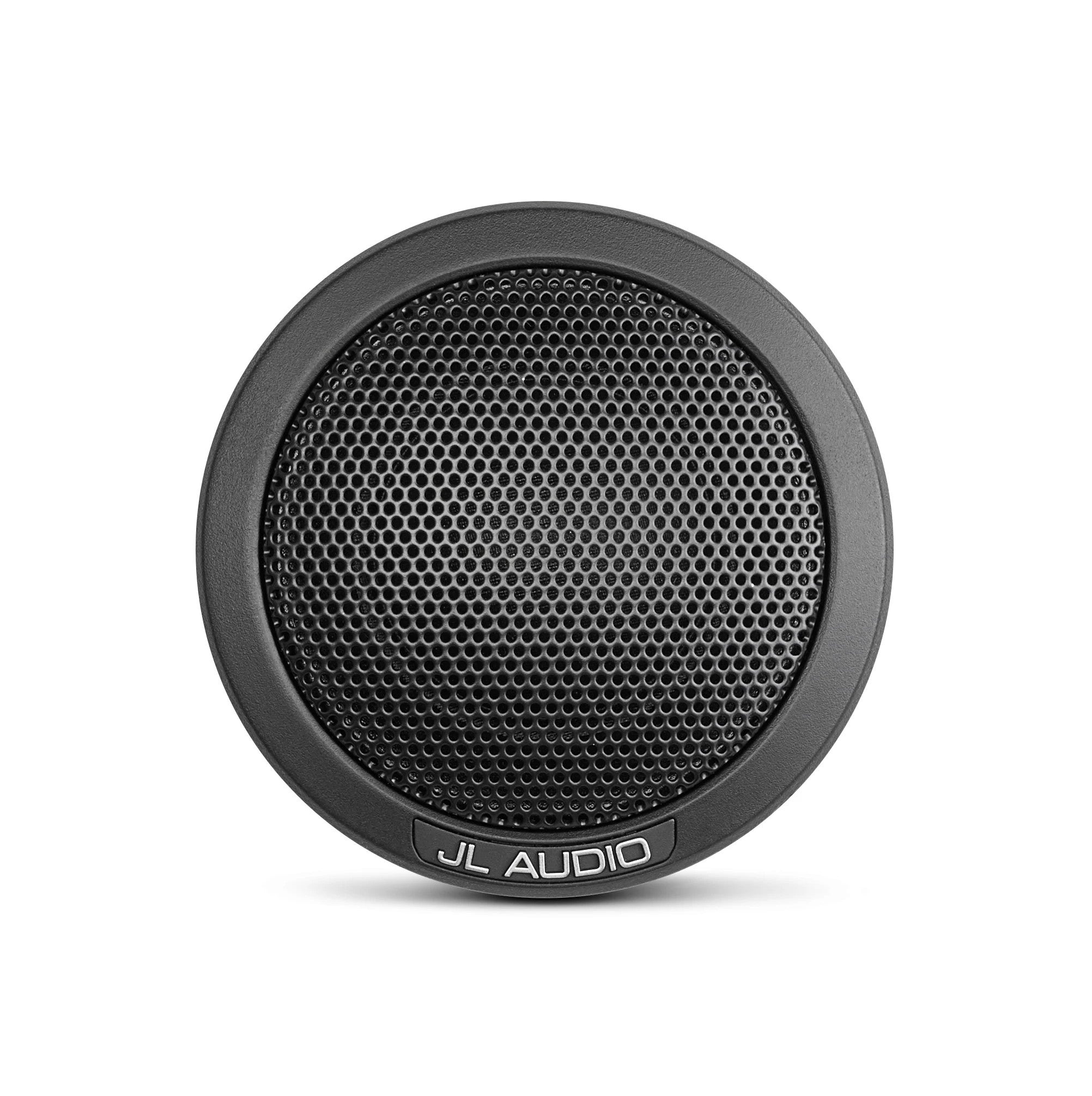

JL Audio C6-100ct C6 1" 75W RMS Edge-Driven Silk Dome Tweeter

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$229.95

SKU:: C6-100ct
UPC:: 699440990509
Condition:: New
Availability:: Special Order - Usually Ships in 3-5 Days
Shipping:: Calculated at Checkout

JL Audio C6-100ct C6 1" 75W RMS Edge-Driven Silk Dome Tweeter

$229.95

Description
Shipping & Returns

Description

About: JL Audio C6-100ct C6 1" 75W RMS Edge-Driven Silk Dome Tweeter

1" (25 mm) Silk Dome Component Tweeter

Born from shared technologies used in our flagship C7 speakers, the C6-100ct component tweeter benefits from vast speaker design experience and advanced modelling systems of JL Audio.

Ideal for active systems, the C6-100ct component tweeter features an edge-driven, pure silk dome diaphragm for smooth, high-frequency performance with remarkable off-axis response and damping. A neodymium motor and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.

Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning digital signal processor (DSP), such as the JL Audio TwK® DSP or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C6 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

C6-100ct Component Tweeter Features:

Edge-driven pure-silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
Neodymium motor delivers high magnetic flux from a compact motor design
Ferrofluid cooling and damping improves reliability and response smoothness

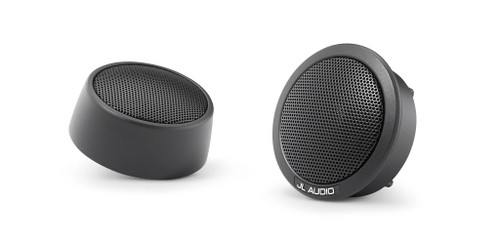

Includes surface- and flush-mount fixtures

Design Bandwidth:

With 48 dB/octave filters: 3-21 kHz
With 24 dB/octave filters: 4-21 kHz
With 12 dB/octave filters: 5-21 kHz

Component tweeters are sold individually and include surface- and flush-mount fixtures and hardware. One 15 μF tweeter protection capacitor is also included.

General Specifications:

Continuous Power Handling (RMS): 75 W
Recommended Amplifier Power (RMS): 25 - 100 W / Ch.
Nominal Impedance: 4 Ω
Frequency Response: 3 kHz - 21 KHz ± 3 dB

Parameters:

Voice Coil Resistance (Re): 3.20 Ω
Free Air Resonance (Fs): 1500 Hz
Reference Efficiency (no): 0.602%
Efficiency: 90 dB @ 1W / 1m, 96 dB @ 1W / 0.5m
Sensitivity: 93 dB @ 2.83V / 1m

Tweeter Physical Specifications:

Flush Mount Fixture Diameter: 2.13 in / 54 mm
Surface Mount Fixture Diameter: 2.16 in / 55 mm
Flush Mount Mounting Hole Diameter: 1.88 in / 48 mm
Flush Mount Mounting Depth: 0.73 in / 19 mm
Flush Mount Tweeter Frontal Protrusion: 0.33 in / 8 mm
Surface Mount Tweeter Frontal Protrusion: 1.06 in / 27 mm

Features:

1" silk edge-driven dome tweeter
C6 6-1/2" woofer sold separately
For use with an active crossover
Power handling: 10-80 watts RMS
Surface- and flush-mountable
Frequency response: 3,000-21,000 Hz
Impedance: 4 ohms
Sensitivity: 93 dB at 2.83 volts
Grille included
Top-mount depth: 1.85"

What's in the Box:

One C6-100ct Tweeter (36" wire attached)
15 microfarad capacitor
Flush-mount housing
Surface-mount housing
Metal spring clip for flush-mount housing
Speed clip
M4x30mm Machine screw
1" Flat-head screw
Crimp-on 0.187" male quick slide
Crimp-on 0.110" male quick slide
Owner's Manual
