JL Audio

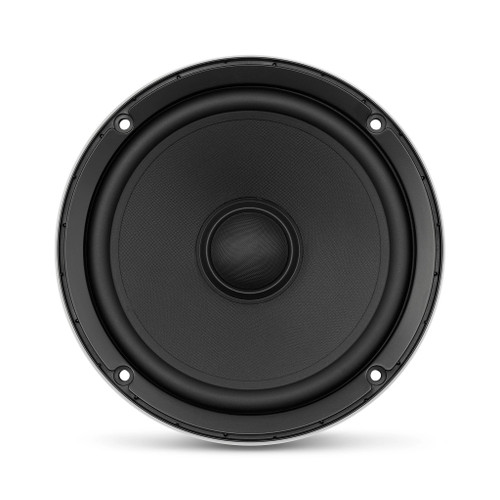

JL Audio C6-650cw C6 6-1/2" 100 W RMS Component Woofer

$459.95
SKU:
C6-650cw
UPC:
699440990592
Condition:
New
Availability:
Special Order - Usually Ships in 3-5 Days
Shipping:
Calculated at Checkout
Out of stock

JL Audio C6-650cw C6 6-1/2" 100 W RMS Component Woofer

$459.95

Out of stock

About: JL Audio C6-650cw C6 6-1/2" 100 W RMS Component Woofer

6.5" (165 mm) Component Woofer (with Grille)

Born from shared technologies used in our flagship C7 speakers, the C6-650cw component woofer benefits from vast woofer design experience and advanced modelling systems of JL Audio.

Ideal for active systems, the C6-650cw component woofer features a proprietary cast alloy frame outfitted with our Elevated Frame Cooling™ technology and a DMA-optimized motor system to generate outstanding midbass impact with ultralow distortion.

Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning digital signal processor, such as the JL Audio TwK® DSP, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C6 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

C6-650cw Component Woofer Features:

  • Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
  • Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
  • Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter’s response
  • Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels
    Cast
  • Cast alloy frame with our Elevated Frame Cooling feature

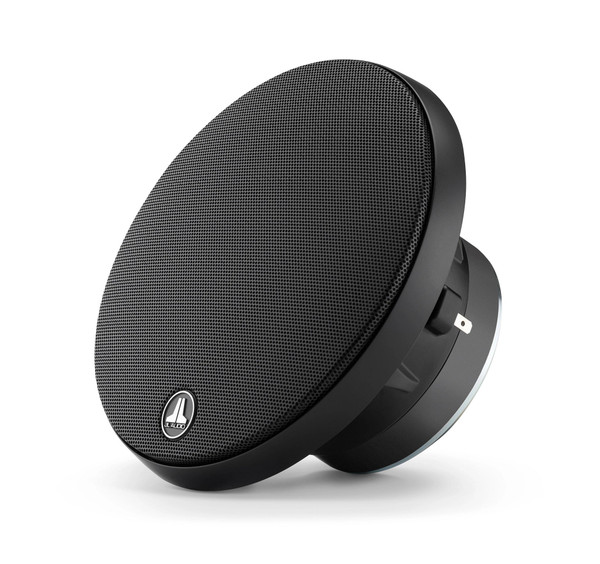

  • Includes fine mesh grille

Design Bandwidth:

  • With 48 dB/octave filters: 55 Hz-6 kHz
  • With 24 dB/octave filters: 65 Hz-6 kHz
  • With 12 dB/octave filters: 80 Hz-6 kHz

Component woofers are sold individually and include a plastic grille tray, one fine steel mesh grille and one electroformed JL Audio badge logo.

General Specifications:

  • Continuous Power Handling (RMS) 100 W
  • Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
  • System Efficiency 87.37 dB @ 1 W / 1 m
  • System Nominal Impedance 4 Ω
  • System Frequency Response 55 Hz - 6 KHz ± 3 dB

Woofer Physical Specifications:

  • Frame Outer Diameter*: 6.50 in / 165 mm
  • Grille Tray Outer Diameter**: 6.76 in / 172 mm
  • Motor Outer Diameter: 3.54 in / 90 mm
  • Frontal Coaxial Tweeter Protrusion: N/A
  • Frontal Grille Protrusion***: 1 in / 25 mm
  • Mounting Hole Diameter: 5.46 in / 139 mm
  • Mounting Depth: 2.60 in / 66 mm
  • *Does not take into account mounting tabs
  • **Does not take into account logo badge
  • ***Frontal grille protrusion measured from mounting surface

Features:

  • Single 6-1/2" component woofer
  • C6 1" tweeter sold separately
  • Mineral-filled polypropylene cone with rubber composite surround
  • For use with an active crossover
  • Power handling: 30-100 watts RMS
  • Peak power handling: 150 watts
  • Frequency response: 55-6,000 Hz
  • Impedance: 4 ohms
  • Sensitivity: 90.37 dB at 2.83 volts
  • Grille included
  • Top-mount depth: 2.6"

What's in the Box:

  • One C6-650cw Woofer
  • Grille frame
  • Grille
  • Four 1-1/4" Pan-head screws
  • Self-adhesive JL Audio badge
  • 1 Crimp-on 0.187" female quick slide
  • 1 Crimp-on 0.25" female quick slide
  • Owner's Manual
