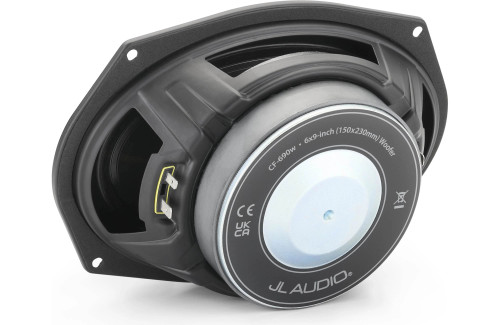

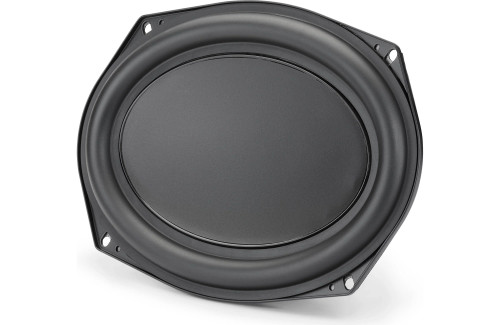

About: JL Audio CF-690W Custom Fit 6"x9" 150W RMS Component Woofer

These custom-fit (CF) speakers from JL Audio are engineered to deliver incredible audio output with easy installation in some of the most popular vehicles, including many Ram, Toyota, Chevrolet and GMC models. The unique frame designs offer seamless, drop-in installation in existing factory speaker locations.

ENGINEERED FOR PERFORMANCE

For efficiency and extended high-frequency response, each driver in the CF series features a unique cone and surround material combination. The speakers can be used as individual drivers for flexible system design in active systems.

DMA-OPTIMIZED SPEAKERS

Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity, low distortion and stellar sound quality. A flat, linear profile spider promotes linear compliance, while a robust motor structure delivers superior power handling and better overall fidelity at high levels.

ADVANCED FRAME DESIGN

Benefiting from years of design experience, all of the CF midtweeters feature glass-filled, high-temperature polymer frames outfitted with insert-molded terminals and unique frame designs for easy, drop-in installation.

MADE TO FIT

CF component drivers are available in a 6-by-9-inch woofer or a 2.75-inch midtweeter to provide easy, direct installation in a variety of existing OEM interior configurations.

POWERFULLY ADAPTABLE

When powered by an amplifier, the CF speaker system delivers superb sound in a wide range of car audio applications.

General Specifications:

• Sizes: 2.75"/6 x 9"
• Continuous power handling (RMS):
• 2.75": 40 W
• 6 x 9": 100 W
• Sensitivity (SPL @ 1 W/1 m):
• 2.75": 86.5 dB
• 6 x 9": 84.8 dB
• Frequency response (+/- 3 dB):
• 2.75": 410 Hz-20 kHz
• 6 x 9": 36-610 Hz
• Nominal impedance: 4 Ω
• Recommended amplifier power (RMS):
• 2.75": 25-75 W/Channel
• 6 x 9": 50-150 W/Channel
• Cone material: Mineral-filled polypropylene
• Grille(s) included: 2.75": yes

Connections:

• Speaker connections: Spade connectors

Mounting Dimensions:

• Frame outer diameter :
• 2.75": 2.85" (72 mm)
• 6 x 9": 6.38 x 9.13" (162 x 232 mm)
• Mounting depth clearance:
• 2.75": 1.45" (37 mm)
• 6 x 9": 2.85" (72 mm)
• Frontal grille protrusion: 2.75": 0.28" (7 mm)
• Motor outer diameter: 6 x 9": 4.72" (120 mm)

Crossover Specifications:

• Width  2.75": 2.53" (64 mm)
• Height 2.75": 1.93 (49 mm)
• Depth  2.75": 1.09" (28 mm)

What's in the Box:

• Two woofers

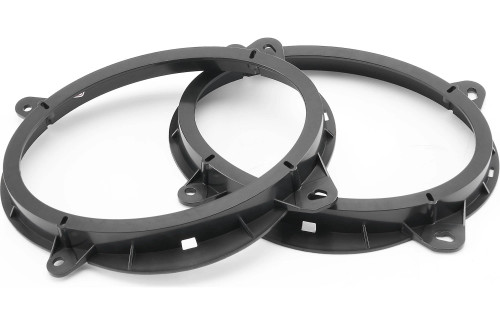

• Four OEM adapter rings
• Two woofer foam gaskets
• Sixteen 1" mounting screws
• Two 0.187” female crimpable connectors
• Two 0.110" female crimpable connectors
