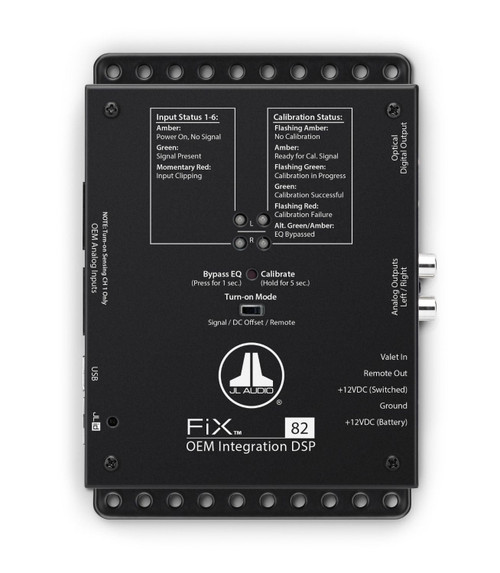

JL Audio FiX 82 Sound Processor OEM Integration DSP with Automatic Time Correction and Digital EQ — 2 Outputs

JL Audio

JL Audio FiX 82 Sound Processor OEM Integration DSP with Automatic Time Correction and Digital EQ — 2 Outputs

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$578.00

$659.99

12% Off

SKU: FiX-82

UPC: 699440981002

Condition: New

Availability: Usually Ships in 1-2 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: JL Audio FiX 82 Sound Processor OEM Integration DSP with Automatic Time Correction and Digital EQ — 2 Outputs

The FiX® 82 is a state-of-the-art digital signal processor engineered to deliver world-class sound from factory audio systems, without replacing the OEM source unit. The FiX® 82 is the first DSP to automatically correct time delayed factory outputs prior to signal summing and EQ correction. With a powerful 24-bit DSP processor and dual 1/3 octave equalizers onboard, complex 2-way, 3-way and 4-way factory audio outputs are combined and level-matched automatically into a flat, full-range stereo signal. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS).

Calibration is initiated with just a single button press and takes only about 30 seconds to complete, with no special equipment needed! By connecting a PC running TüN® Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN® interface, you can also access a pair of user-adjustable, 10-band, graphic equalizers to fine tune the output signals.

Output options include dual RCA jacks (4V RMS) or a digital optical (Toslink) output, supporting PCM audio (S/PDIF) at 24 bit/48 kHz resolution. Activation methods include 12-volt or automatic (Signal/DC-Offset Sensing), plus a dedicated remote turn-on output for activating your aftermarket equipment. Connect the optional DRC-100 Digital Remote Controller (sold separately) to add Master Volume Control capabilities from the driver’s seat. Clipped input signals and overall condition are also reported via the DRC-100's multi-color status LED. Achieving great sound from your factory stereo has never been easier, or sounded better.

Features:

System integration digital sound processor with automatic time alignment, channel summing, and equalization
Removes factory sound processing for aftermarket speakers and amps
8 speaker-level inputs (ch 1-6: full-range; ch 7-8: subwoofer)
Two stereo outputs (analog RCA and optical digital S/PDIF) for connection to external processors and amplifiers
24 bit/48 KHz digital audio resolution
Calibration CD included
Digital signal processing via Windows PC and JL Audio's TüN software
- Displays frequency response before and after processing
- 10-band graphic EQ on outputs
- Control FiX calibration process
- Reverse polarity of any input

Specifications:

Power Supply Type Regulated: DC-DC SMPS
Input Operating Voltage: 10 - 16 VDC
Standby Current Draw: <1.5 mA
Operating Current Draw: 0.7 A
Recommended Fuse Value: 1 A

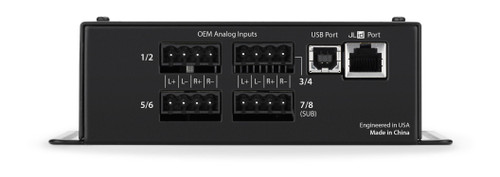

Input Channels: Eight
Input Type: Differential-Balanced
Input Voltage Range: 250 mV - 30 V RMS
Minimum Input Voltage: 10 mV RMS
Input Level Setting: Fully automatic

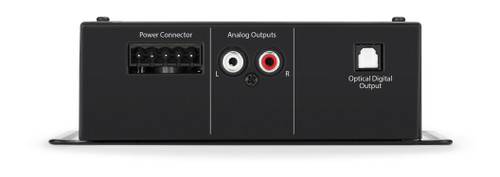

Output Channels: Two
Analog Output: Unbalanced, stereo RCA jacks
Digital Output: Optical (Toslink) output (S/PDIF)
Output Impedance: 450 Ω
S/N Ratio: 96 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)
Dimensions (W x H x D): 4.29" x 1.85" x 6.14" (109 x 47 x 156 mm)
Net Weight: 2.58 lb / 1.17 kg

Signal Processing:

Audio Resolution: 24 bit / 48 kHz
Number of EQ Bands: 30 x 2 channels
EQ Resolution: 1/3 octave (25 Hz - 20 kHz)
Remote Level Control: Optional (DRC-100)
Remote Level Functions: Master Volume Control, Handsfree Optimization, LED Status Reporting

What's in the Box:

Processor
Four 4-pin Euroblock (Phoenix) connectors
One 5-pin Euroblock connector
Owner's manual
Calibration disc
