About: JL Audio FiX™ 86 Sound Processor OEM Integration DSP with Automatic Time Correction and Digital EQ — 6 Outputs

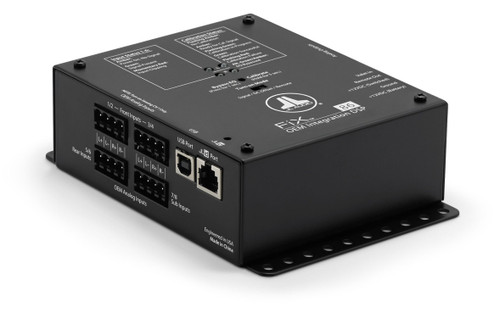

The FiX® 86 is a state-of-the-art digital signal processor engineered to deliver outstanding sound from factory source units, while retaining OEM fader control. Unlike typical OEM interface products, the FiX® 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed.

With a powerful 24-bit DSP processor and quad 1/3 octave equalizers onboard, complex factory signals, up to 3-way front and 2-way rear, are combined and level matched automatically into six, full-range stereo signals: Front (fader-controlled), Rear (fader-controlled) and Subwoofer (non-fading, front+rear summed) outputs.

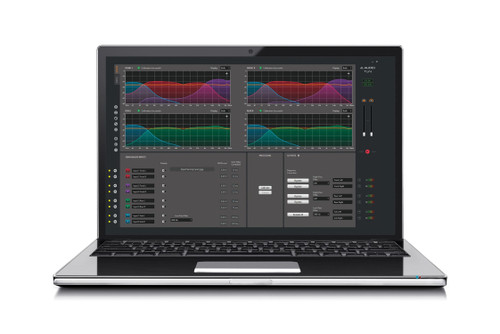

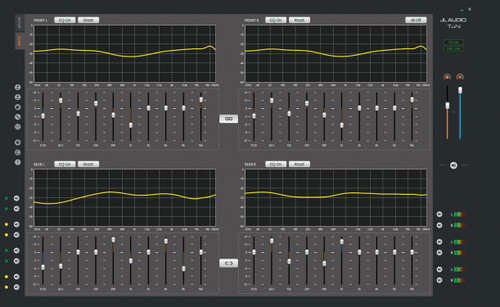

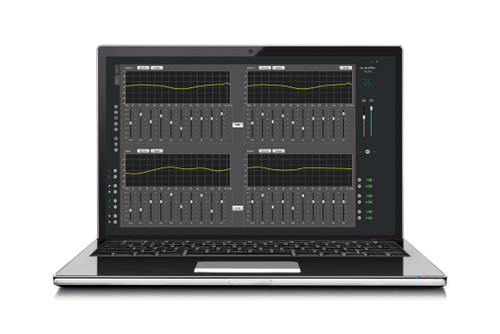

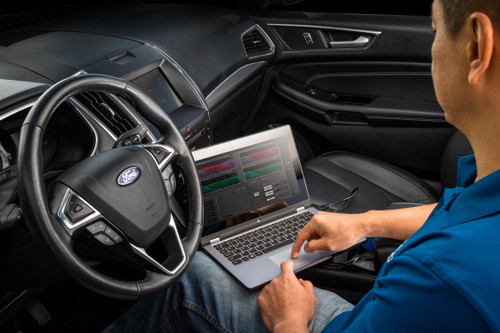

By connecting a PC running TüN® Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN® interface, you can also access four, user-adjustable, 10-band, graphic equalizers to fine tune the output signals.

Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS). Activation methods include 12-volt or Auto Turn-On (Signal/DC-Offset Sensing) to trigger a dedicated remote turn-on output for aftermarket equipment. An optional DRC-100 or DRC-200 Digital Remote Controller (sold separately) adds Master Volume Control and/or Subwoofer Level Control from the driver’s seat. Achieving great sound from your factory stereo has never been easier, or sounded better... Now with fader retention and subwoofer output!

Features:

System integration digital sound processor with automatic time alignment, channel summing, and equalization
Removes factory sound processing for aftermarket speakers and amps

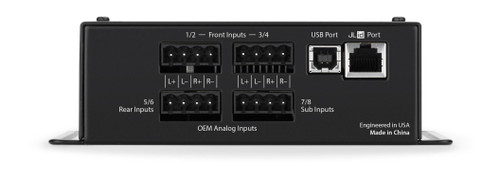

8 speaker-level inputs (ch 1-2: full-range; ch 7-8: subwoofer)
6 preamp outputs (3 pairs RCA) for connection to external processors and amplifiers
24 bit/48 KHz digital audio resolution
Calibration CD included
Digital signal processing via Windows PC and JL Audio's TüN software
- Displays frequency response before and after processing
- 10-band graphic EQ on front and rear channels
- Control FiX calibration process
- Reverse polarity of any input
- High-pass filters on front and rear outputs

Specifications:

Power Supply Type: Regulated DC-DC SMPS
Input Operating Voltage: 10 - 16 VDC
Standby Current Draw: <1.5 mA
Operating Current Draw: 0.7 A
Recommended Fuse Value: 1 A
Input Channels: Eight
Input Type: Differential-Balanced
Input Voltage Range: 250 mV - 30 V RMS
Minimum Input Voltage: 10 mV RMS
Input Level Setting: Fully automatic
Output Channels: Six (Front/Rear/Sub Output Pairs)
Analog Output: Unbalanced, stereo RCA jacks
Digital Output: N/A
Output Impedance: 450 Ω
S/N Ratio: 96 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)
Dimensions (W x H x D): 4.29" x 1.85" x 6.14" (109 x 47 x 156 mm)
Net Weight: 2.58 lb / 1.17 kg

Signal Processing:

Audio Resolution:24 bit / 48 kHz
Number of EQ Bands: 30 x 2 channels
EQ Resolution: 1/3 octave (25 Hz - 20 kHz)
Remote Level Control: Optional (DRC-100 or DRC-200)
Remote Level Functions: Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control)

What's in the Box:

Processor
Four 4-pin Euroblock (Phoenix) connectors
One 5-pin Euroblock connector
Owner's manual
Calibration disc
