About: JL Audio HD600/4 HD Series 4-Channel Amplifier — 150W RMS x 4

This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Features:

4-channel amplifier
150 watts RMS x 4 (rated power from 1.5 to 4 ohms)
300 watts RMS x 2 bridged (rated power from 3 to 8 ohms)
Variable high- and low-pass filter (50-500 Hz 12 or 24dB/octave)
Subsonic filter and output polarity control
Removable power and speaker plugs
Optional wired remote for level control

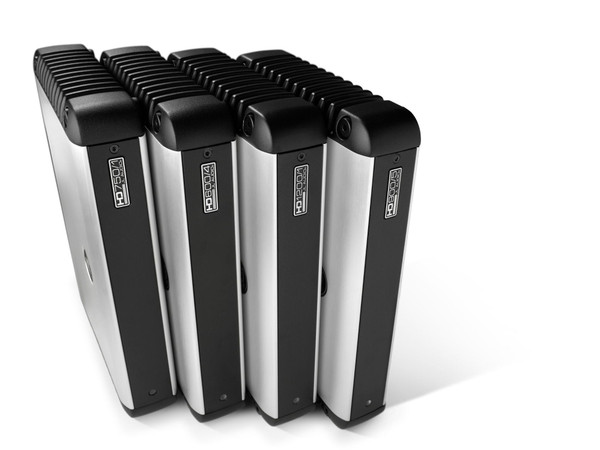

Optional HD stacking kit for stacking multiple HD amps together
Class D amplifier design
MOSFET power and output stages
Differential-balanced inputs eliminate noise from your vehicle's electrical system
Speaker- and preamp-level inputs (speaker-level input requires an optional adapter)
Preamp outputs
Dimensions (W x H x D): 10.74" x 1.93" x 7.85" (273 x 49 x 199 mm)
Weight: 6.6 lb (2.99 kg)

Specifications:

Rated Continuous (RMS) Power @ 14.4 V:

@ 4 Ω 150 W RMS x 4
@ 3 Ω 150 W RMS x 4
@ 2 Ω 150 W RMS x 4
@ 1.5 Ω 150 W RMS x 4
Bridged @ 8 Ω 300 W RMS x 2
Bridged @ 4 Ω 300 W RMS x 2

Rated Continuous (RMS) Power @ 12.5 V:

@ 4 Ω 150 W RMS x 4
@ 3 Ω 150 W RMS x 4
@ 2 Ω 150 W RMS x 4
@ 1.5 Ω 150 W RMS x 4
Bridged @ 8 Ω 300 W RMS x 2
Bridged @ 4 Ω 300 W RMS x 2

Frequency Response: 6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power: >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >300 / 50 Hz
Damping Factor @ 2 Ω: >150 / 50 Hz
THD+N @ Rated Power: <0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)

Signal Processing:

Filter Mode(s): Low-Pass or High-Pass
Filter Slope(s): 12/24 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers: Yes
Filter Defeat Function: Yes
Remote Level Control: Optional (HD-RLC)
Remote Level Modes: 2 or All Channels
Channel Input Mode Switch: Yes (2/4 ch.)
Pass-Through Preamp Output: Buffered
Source Channel Selection for PreOuts: Yes

What's in the Box:

Four-channel class-D full-range amplifier
Power/Ground/Turn-On plug
2 Speaker connection plugs
4 Mounting brackets
2mm Allen-wrench
2.5mm Allen-wrench
3mm Allen-wrench
3.5mm Allen-wrench
4mm Allen-wrench
5mm Allen-wrench
4 Mounting bolts
Owner's Manual
