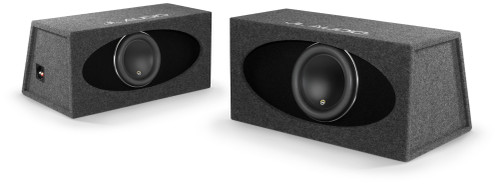

About: JL Audio HO112R-W7AE Single 12" 1000W RMS Ported H.O. Wedge Enclosure

JL Audio's High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.

JL Audio's chamber-coupled port design wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W7AE driver.

This enclosure design has been carefully engineered to the optimum ported alignment for the 12W7AE-3 and has been fine-tuned through extensive real-world listening. The high power handling of the 12W7AE, combined with the efficiency of this subwoofer system, produce a devastating performance combination.

This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer. The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.

Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.

Features:

• Ported enclosure with one 12" W7AE subwoofer
• 5/8" medium density fiberboard construction covered with gray carpet
• 1" medium density fiberboard mounting baffle with black carpet cover
• 3-ohm total impedance
• Power handling: 400-1,000 watts RMS (2,000 watts peak power)
• Frequency response: 18-200 Hz
• Sensitivity: 86 dB

Specifications:
