JL Audio JD1000/1 JD Series 1000W RMS Monoblock Amplifier

have questions?

+1 (416) 745-1021

Ask an Expert

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Installation Assistance

We're happy to help
Canada Wide Delivery

Free shipping on orders over $200*

JL Audio

JL Audio JD1000/1 JD Series 1000W RMS Monoblock Amplifier

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$599.95

SKU:: JD1000/1
UPC:: 699440983631
Condition:: New
Availability:: Usually Ships in 1-2 Days
Shipping:: Calculated at Checkout

JL Audio JD1000/1 JD Series 1000W RMS Monoblock Amplifier

$599.95

Description
Shipping & Returns

Description

About: JL Audio JD1000/1 JD Series 1000W RMS Monoblock Amplifier

Designed to produce a serious 1000 watts into 2 ohms (14.4V, 1% THD), the JD1000/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

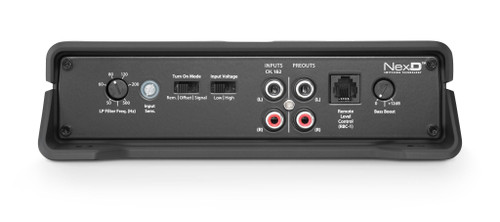

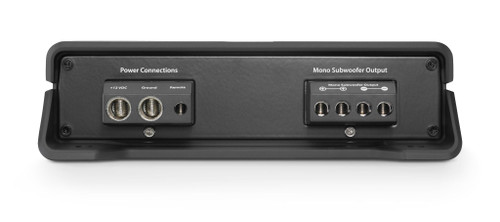

The JD1000/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The JD1000/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.

Features:

Mono subwoofer amplifier

600 watts RMS x 1 at 4 ohms
1000 watts RMS x 1 at 2 ohms

Class D amp design with NexD™ switching technology
Frequency response: 7-500 Hz
Variable low-pass filter (50-500 Hz, 12 dB/octave)
Variable bass boost (0-12 dB at 45 Hz)
Optional RBC-1 wired remote level control
Preamp inputs and outputs
- Differential-balanced inputs prevent noise
Speaker-level input via speaker wire-to-RCA adapters
- Signal-sensing turn-on with speaker-level inputs
Dimensions (W x H x D): 11.40" x 2.10" x 7.50" (290 x 53 x 190 mm)

Specifications:

Rated Continuous (RMS) Power @ 14.4 V:

@ 4 Ω 600 W RMS x 1
@ 3 Ω 800 W RMS x 1
@ 2 Ω 1000 W RMS x 1
@ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V:

@ 4 Ω 500 W RMS x 1
@ 3 Ω 650 W RMS x 1
@ 2 Ω 800 W RMS x 1
@ 1.5 Ω N/A

Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >1000 / 50 Hz
Damping Factor @ 2 Ω: >500 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)

Signal Processing:

Filter Mode(s): Low-Pass only
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer: No
Filter Defeat Function: No
Infrasonic Filter: No
Bass Boost EQ: Yes
Output Polarity Switch: No
Remote Subwoofer Level Control: Optional (RBC-1)
Remote Bass EQ Boost Control: No
Pass-Through Preamp Output: Buffered

What's in the Box:

Monoblock subwoofer amplifier
2.5mm Hex key
3mm Hex key
Owner's manual
