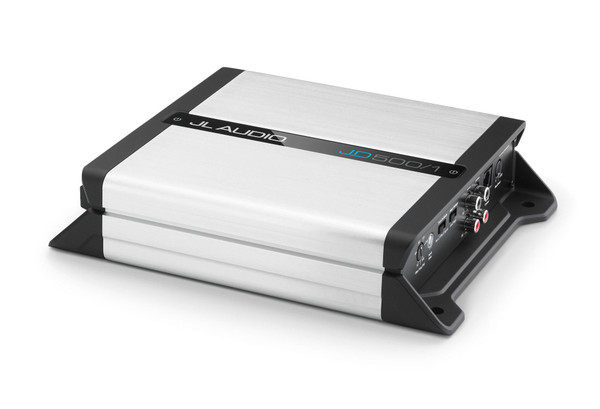

About: JL Audio JD500/1 JD Series 500W RMS Monoblock Amplifier

Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

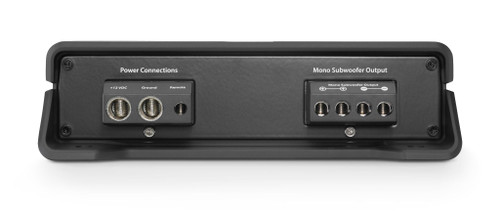

The JD500/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.

Features:

• Mono subwoofer amplifier

  • 250 watts RMS x 1 at 4 ohms
  • 500 watts RMS x 1 at 2 ohms
• Class D amp design with NexD™ switching technology
• Frequency response: 7-500 Hz
• Variable low-pass filter (50-500 Hz, 12 dB/octave)
• Variable bass boost (0-12 dB at 45 Hz)
• Optional RBC-1 wired remote level control
• Preamp inputs and outputs
  • Differential-balanced inputs prevent noise
• Speaker-level input via speaker wire-to-RCA adapters
  • Signal-sensing turn-on with speaker-level inputs
• Dimensions (W x H x D): 9.50" x 2.10" x 7.50" (242 x 53 x 190 mm)

Specifications:
