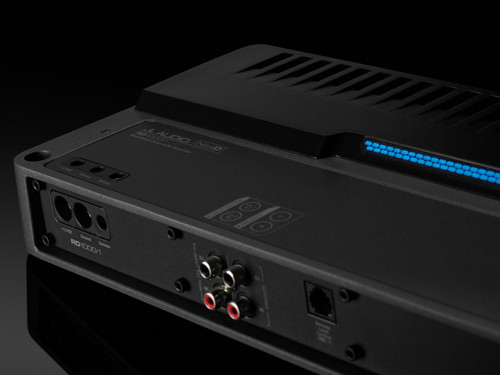

About: JL Audio RD1000/1 1000W RMS Monoblock Amplifier
Purpose-built for subwoofer applications, the RD1000/1 monoblock amplifier delivers 1000 watts of jaw-dropping bass output into 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion.
For your convenience, all of the RD1000/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The RD1000/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1000/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the driver’s seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately).
Features:
- Mono subwoofer amplifier
- 600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms)
- Class D amplifier design with NextD™ switching amp technology
- Differential-balanced inputs help eliminate noise
- Variable low-pass filter (50-500 Hz, 12 dB/octave)
- Variable bass boost (0-12 dB at 45 Hz)
- LED clip light helps set gain
- Blue LED accent lighting
- Optional wired remote level control
- Preamp inputs and outputs
- Speaker-level inputs (speaker wire to RCA adapter required)
- Dimensions (W x H x D): 14.66" x 2.13" x 6.96" (372 x 54 x 177 mm)
Specifications:
- Rated Continuous (RMS) Power @ 14.4 V:
- @ 4 Ω 600 W RMS x 1
- @ 3 Ω 800 W RMS x 1
- @ 2 Ω 1000 W RMS x 1
- @ 1.5 Ω N/A
- Rated Continuous (RMS) Power @ 12.5 V:
- @ 4 Ω 500 W RMS x 1
- @ 3 Ω 650 W RMS x 1
- @ 2 Ω 800 W RMS x 1
- @ 1.5 Ω N/A
- Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >1000 / 50 Hz
- Damping Factor @ 2 Ω: >500 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
Signal Processing:
- Filter Mode(s): Low-Pass only
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer: No
- Filter Defeat Function: No
- Infrasonic Filter: No
- Bass Boost EQ: Yes
- Output Polarity Switch: No
- Remote Subwoofer Level Control: Optional (RBC-1)
- Remote Bass EQ Boost Control: No
- Pass-Through Preamp Output: Buffered
What's in the Box:
- Mono block amplifier
- JL Audio badge
- 2.5mm Allen wrench
- Owner's Manual
