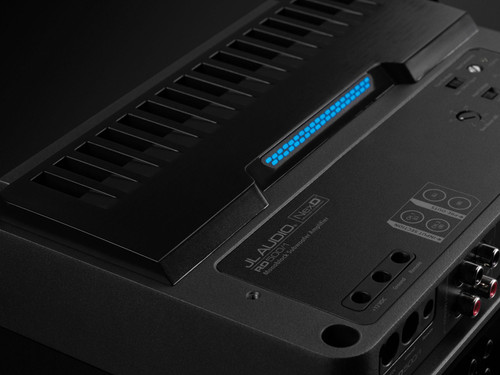

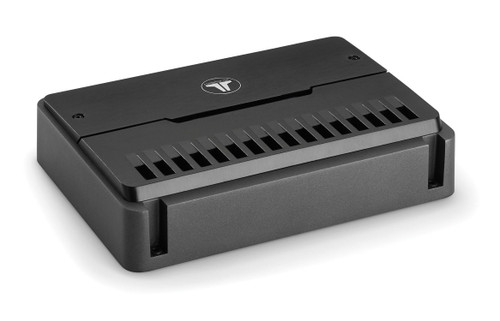

JL Audio RD500/1 500W RMS Monoblock Amplifier

$659.99
SKU: RD500/1
UPC: 699440986182
Condition: New
Availability: Usually Ships in 1-3 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: JL Audio RD500/1 500W RMS Monoblock Amplifier

Born to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the RD500/1 amplifier was engineered to generate tons of pure subwoofer bliss from a sleek, ultra-compact chassis. The secret behind its power proficiency is our proprietary NexD™ switching technology, which delivers large amounts of power output with precise efficiency and ultra-low distortion.

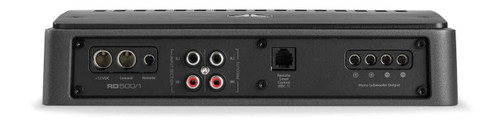

For your convenience, the RD500/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The RD500/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD500/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer output directly from the driver’s seat.

Features:

  • Mono subwoofer amplifier
  • 250 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
  • Class D amplifier design with NextD™ switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • Variable bass boost (0-12 dB at 45 Hz)
  • LED clip light helps set gain
  • Blue LED accent lighting
  • Optional wired remote level control
  • Preamp inputs and outputs
  • Speaker-level inputs (speaker wire to RCA adapter required)
  • Dimensions (W x H x D): 9.78" x 2.13" x 6.96" (248 x 54 x 177 mm)

Specifications:

  • Rated Continuous (RMS) Power @ 14.4 V:
    • @ 4 Ω 250 W RMS x 1
    • @ 3 Ω 350 W RMS x 1
    • @ 2 Ω 500 W RMS x 1
    • @ 1.5 Ω N/A
  • Rated Continuous (RMS) Power @ 12.5 V:
    • @ 4 Ω 225 W RMS x 1
    • @ 3 Ω 300 W RMS x 1
    • @ 2 Ω 400 W RMS x 1
    • @ 1.5 Ω N/A
  • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: >1000 / 50 Hz
  • Damping Factor @ 2 Ω: >500 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)

Signal Processing:

  • Filter Mode(s): Low-Pass only
  • Filter Slope(s): 12 dB/octave
  • Filter Frequency Range: 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometer: No
  • Filter Defeat Function: No
  • Infrasonic Filter: No
  • Bass Boost EQ: Yes
  • Output Polarity Switch: No
  • Remote Subwoofer Level Control: Optional (RBC-1)
  • Remote Bass EQ Boost Control: No
  • Pass-Through Preamp Output: Buffered

What's in the Box:

  • Mono amplifier
  • 2.5mm Allen wrench
  • Self-adhesive JL Audio badge
  • Owner's manual
