JL Audio RD900/5 5-Channel Car Amplifier — 70W RMS x 4 + 500W RMS x 1

$999.95

$799.00

Description
Shipping & Returns

Description

About: JL Audio RD900/5 5-Channel Car Amplifier — 70W RMS x 4 + 500W RMS x 1

Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.

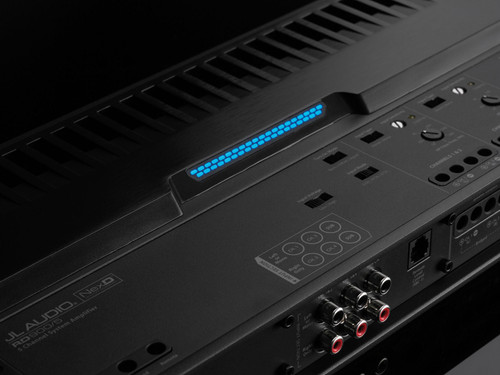

Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.

LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat.

Features:

5-channel car amplifier
70 watts RMS x 4 + 225 watts RMS x 1 at 4 ohms
100 watts RMS x 4 + 500 watts RMS at 2 ohms
200 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode) + 500 watts RMS at 2 ohms
Class D amplifier design with NextD™ switching amp technology
Differential-balanced inputs help eliminate noise
Variable high-pass filters (50-500 Hz, 12 dB/octave) on front and rear channels
Variable low-pass filter (50-500 Hz, 12 dB/octave) on subwoofer channel
LED clip lights help set gain
Blue LED accent lighting
Optional wired remote level control for subwoofer channel
Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
Dimensions (W x H x D): 14.66" x 2.13" x 6.96" (372 x 54 x 177 mm)

Specifications:

Rated Continuous (RMS) Power @ 14.4 V:

Main Channels @ 4 Ω 70 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 225 W RMS x 1
Subwoofer Channel @ 3 Ω 325 W RMS x 1
Subwoofer Channel @ 2 Ω 500 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V:

Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 200 W RMS x 1
Subwoofer Channel @ 3 Ω 250 W RMS x 1
Subwoofer Channel @ 2 Ω 350 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

Frequency Response (Main Channels): 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel): 10 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels): >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >150 / 50 Hz
Damping Factor @ 2 Ω: >75 / 50 Hz
THD+N @ Rated Power (Main Channels): <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)

Signal Processing:

Filter Mode(s): Channels 1 & 2 (front): High-Pass only
Filter Slope(s): Channels 1 & 2 (front): 12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front): 50 Hz - 500 Hz
Filter Mode(s): Channels 3 & 4 (rear): High-Pass only
Filter Slope(s): Channels 3 & 4 (rear): 12 dB/octave
Filter Frequency Range: Channels 3 & 4: 50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel: Low-Pass only
Filter Slope(s): Subwoofer Channel: 12 dB/octave
Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers: No
Filter Defeat Function: No
Infrasonic Filter: Subwoofer Channel: No
Remote Level Control: Optional (RBC-1)
Remote Level Modes: Sub Ch.
Channel Input Mode Switch: Yes (2/4/6 ch.)
Pass-Through Preamp Output: No
Source Channel Selection for PreOuts: N/A

What's in the Box:

5-Channel amplifier
2.5mm Allen wrench
Self-adhesive JL Audio badge
Owner's manual
