About: JL Audio Stealthbox Dual 10" 600W RMS TW1 Subwoofers for 2006-Up Dodge RAM 2500/3500 Mega Cab - 2 Ohm

Stealthbox® for 2006-Up RAM 2500/3500 Mega Cab

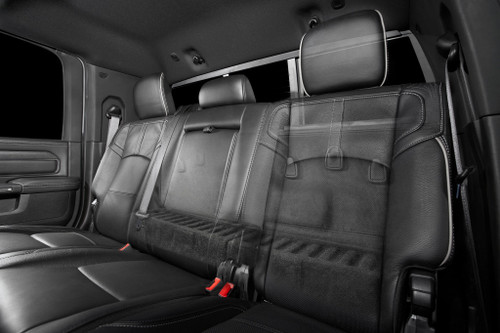

Ram's Mega Cab delivers a cavernous cabin with one of the largest interiors available in a pickup. Too bad the factory audio systems are ill-equipped and struggle in the bass reproduction department. To overcome this challenge, our engineers developed a subwoofer solution that installs neatly, behind the back seat of this monstrous people mover, without compromising rear seat comfort.

This Stealthbox® is outfitted with two of our innovative, 10-inch TW1 thin-line subwoofers in a custom-formed, sealed enclosure. The result is outstanding sub-bass performance with deep extension and solid impact. For those looking for even more performance, two enclosures can be installed side by side for up to 6dB more of jaw-dropping output.

The Hard Data: Contains two 10TW1-4 in a sealed enclosure. 600 watt power handling. Wired for 2 ohm mono. Installation requires removal of rear seat storage compartment and OEM subwoofer, if equipped.

Specifications:

• Includes two 10" TW1 (Thin-Line) Series Single 4-ohm Subwoofers
• Power Handling:
• RMS: 300 Watts Each / 600 Watts Total
• Recommended Power Range: 75 - 300 watts
• Impedance: Single 4-Ohm
• Injection molded, mica-filled polypropylene cone
• Rubber surround
• No pole vent: permits mounting close to rear wall of enclosure.
• Ultra-compact sealed enclosure volume requirements
• Long linear excursion capability
• DMA-optimized motor designs
• Engineered Lead-Wire System
• Patented concentric tube architecture
• Patented floating cone attach method technology
• Cast alloy frame with flat edges for tight driver grouping
• Steel mesh grille included with each driver
• Precision-built in the USA at JL Audio's Miramar, Florida factory
• Mounting depth: 4.36 "
• Cutout dimensions: 9.0625 "
• Free Air Resonance (Fs): 38.09 Hz
• Sensitivity: 82.2 dB
• Xmax: 10.0 mm
• Equivalent Compliance (Vas): 12.15 L
• Frequency response: 26-200 Hz
