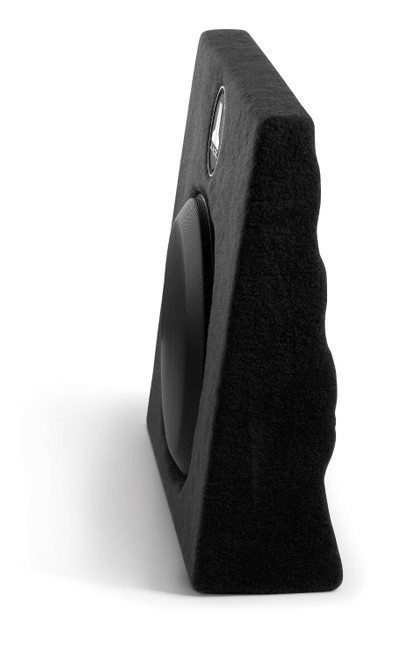

About: JL Audio Stealthbox Single 13" 600W RMS TW5v2 Subwoofer for Select 2007-2013 Toyota Tundra CrewMax - 4 Ohm

Stealthbox® for 2007-2013 Toyota Tundra CrewMax

Toyota's largest truck offers amazing people space, but doesn't leave much for a traditional subwoofer enclosure. It's a good thing we don't let conventional thinking get in the way of creating Stealthbox® solutions.

Using the remarkable 13TW5v2 thin-line subwoofer, we have created a powerful Stealthbox® that can be installed behind the back seat of the big Tundra. One is enough for creating outstanding sub-bass with deep extension and solid impact, but for those looking for maximum performance, installing a pair of them will deliver up to 6dB more output.

The Hard Data: Contains one 13TW5v2-4 subwoofer in a sealed enclosure. 600 watt power handling. Wired for 4 ohm mono. Installs behind the rear bench. One notch of seat travel is lost with installation and full-recline of the seat-back is only available when the seat is in its more forward positions. If the vehicle is equipped with the factory JBL® subwoofer, you must do one of the following to install the Stealthbox®:

• Permanently modify (cut) the factory trim panel
• Obtain a replacement “no-subwoofer” trim panel from Toyota Parts prior to installation

Specifications:

• Diameter: 13.5 Inch
• Sensitivity: 85.63 dB
• Impedance: 4 Ohm
• RMS Power Output: 600 Watts
• Number Of Subwoofers: 1
• Enclosure Type: Sealed
• 7-inch diameter voice coil
• DMA-optimized motor designs
• Mica-filled polypropylene cone
• Cast alloy basket
• Patented "floating cone attach method" technology
• Xmax: 11 mm
• Frequency response: 20 - 200 Hz
• Matching Amplifier: JL Audio XD600/1v2
• Patented "concentric tube" architecture
• Recommended Power Range: 250-600 watts
• Santoprene surround
• Unique design allows for small airspace requirements
• 13% greater linear excursion capability over previous model
• Redesigned motor features an annular vent
