JL Audio TWK 88 System Tuning Processor 8-Channel Digital Signal Processor

$829.95

Description
Shipping & Returns

Description

About: JL Audio TWK 88 System Tuning Processor 8-Channel Digital Signal Processor

System Tuning DSP with 8-ch. Stereo RCA Inputs / 2 Digital (Optical and Coaxial) Inputs / 8-ch. Stereo RCA Outputs / 1 Digital Optical Output

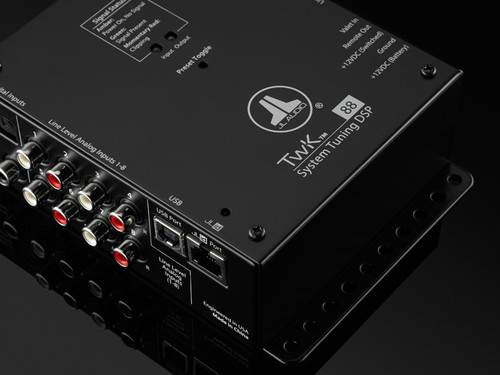

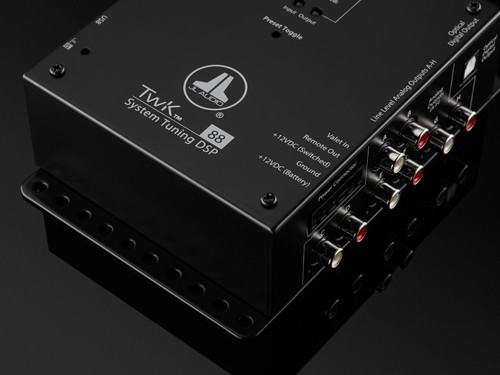

The TwK® 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK® 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.

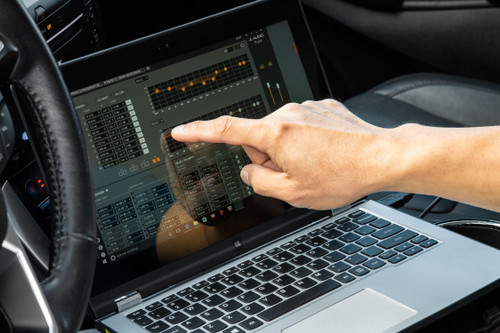

Control the TwK® 88’s entire feature set by connecting it to your PC via USB, using the companion TüN® Software interface.

Flexible input design with 8 differential-balanced, line-level analog inputs (RCA), accepting line-level signals up to 7.1V (RMS)
Separate optical (Toslink) and coaxial digital inputs for connection to digital S/PDIF sources.
Flexible input mixer allows input channels to be combined with full control over each input’s level and polarity.
8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination
8 analog, line-level RCA output jacks (4V RMS)
Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.
Remote turn-on output (+12VDC) for activating aftermarket audio equipment.
JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, preset selection and LED status reporting from the driver's seat.

General Specifications:

Power Supply Type: Regulated DC-DC SMPS
Input Operating Voltage: 10 - 16 VDC
Standby Current Draw: <1.5 mA
Operating Current Draw: 0.7 A
Recommended Fuse Value: 1 A
Input Channels: Eight
Input Type: Line-level, Differential-Balanced
Input Voltage Range: 250 mV - 7.1 V RMS
Minimum Input Voltage: 10 mV RMS
Input Level Setting: Eleven discrete selections from 250 mV - 7.1V RMS
Output Channels: Eight
Analog Output: Unbalanced, stereo RCA jacks
Digital Output: Optical (Toslink) output (S/PDIF)
Output Impedance: 450 Ω
Latency:

Analog - Analog: 5.425 mS
Analog - Optical: 5.470 mS
Optical - Optical: 4.860 mS
Optical - Analog: 4.805 mS

S/N Ratio: 98 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)

Signal Processing:

Audio Resolution 24 bit / 48 kHz
Number of EQ Bands 10 x 8 Channels
Remote Level Control Included (DRC-200)
Remote Level Functions Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting

Physical Specifications:

Height (H): 1.85 in / 47 mm
Width (W): 4.29 in / 109 mm
Depth (D): 6.14 in / 156 mm
Net Weight: 2.58 lbs / 1.17 kg

Features:

8-channel digital signal processor
DSP adjustments and settings made via Windows PC running JL Audio's TwK-TuN app
8 analog preamp inputs: (RCA), 2 digit inputs (optical and coax)
8 analog preamp outputs (RCA), 1 digital output (optical)
All inputs assignable to any output channel
Channel settings can be separate or linked together
10-band EQ
Time alignment in 0.02 ms increments
Fully adjustable high- and low-pass filters
- Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
DRC-200 wired remote control included
Dimensions: 4-7/8"W x 1-15/16"H x 6-3/16"D

What's in the Box:

Processor
5-Pin Euroblock (Phoenix) connector
15' USB cable (Type-A on one end
Type-B on other end
2.0)
18' Control cable w/ RJ-45 connectors on both ends
DRC-200 Level Control Knob w/ 46" attached cord terminating in a female RJ-45 socket and attached status LED w/ 38" cord
LED mounting collar
Two locking nuts
Two flat washers
Owner's manual
