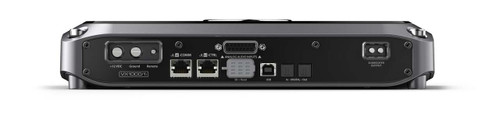

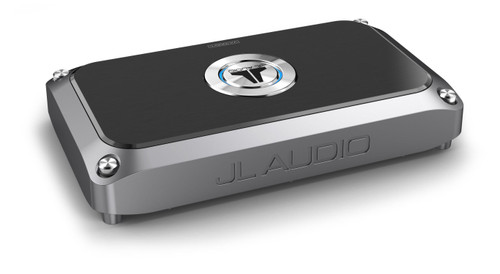

JL Audio VX1000/1i 1000W RMS Monoblock Amplifier with Digital Signal Processing

have questions?

+1 (416) 745-1021

Ask an Expert

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Installation Assistance

We're happy to help
Canada Wide Delivery

Free shipping on orders over $200*

JL Audio

JL Audio VX1000/1i 1000W RMS Monoblock Amplifier with Digital Signal Processing

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$2,099.95

$1,789.95

SKU:: VX1000/1i
UPC:: 699440986311
Condition:: New
Availability:: Special Order - Usually Ships in 3-5 Days
Shipping:: Calculated at Checkout

JL Audio VX1000/1i 1000W RMS Monoblock Amplifier with Digital Signal Processing

$2,099.95

$1,789.95

Description
Shipping & Returns

Description

About: JL Audio VX1000/1i 1000W RMS Monoblock Amplifier with Digital Signal Processing

Monoblock Class D Subwoofer Amplifier with Integrated DSP, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

The VX1000/1i monoblock subwoofer amplifier outputs up to 600 watts into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Features:

Unprecedented, Onboard DSP Tuning Power!

Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.

2nd-Gen NexD2™ Switching Amplifier Technology

Advanced, high-speed switching technology delivers reference-grade power and efficiency.
DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.

Ultra-Versatile Analog and Digital Inputs/Outputs 

Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
Automatic turn-on options via signal-sensing or DC-offset sensing

JLid™ System Command and Control with Networking Capabilities

Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:

DRC-100 / DRC-205 (Digital Remote Controllers): Offers convenient DSP preset selection and level adjustments from the driver’s seat.
VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device. 

VXi-HUB Optical Network Hub: Provides network connectivity for up to six VXi amplifiers, allowing full-system DRC control and preset selection. Up to two VXi-HUBs can be daisy-chained to control up to ten VXi amplifiers.

Specifications:

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω 600 W RMS x 1
@ 3 Ω 800 W RMS x 1
@ 2 Ω 1000 W RMS x 1
@ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 500 W RMS x 1
@ 3 Ω 650 W RMS x 1
@ 2 Ω 800 W RMS x 1
@ 1.5 Ω N/A

General Specifications:

Frequency Response 12 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs) 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs) 60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs) 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs) 56 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >400 / 50 Hz
Damping Factor @ 2 Ω >300 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)

Other Features:

Mono subwoofer amplifier
600 watts RMS x 1 at 4 ohms (1,000 watts RMS at 2 ohms)
Class D amplifier design with NexD2™ switching amp technology

Digital Signal Processing:

24-bit 96 kHz digital processing
DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
Input routing and mixing
Adjustable gain controls with clip indication
Fully adjustable high-pass, low-pass, and bandpass filters
- Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
10-band EQ
Phase and polarity control
Time alignment in 0.01 ms (1/8") increments

Connection Features

Differential-balanced inputs eliminate noise coming from your vehicle's electrical system
Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- High-level inputs — up to 16 volts RMS (about 60 watts)
- DC offset or signal sensing auto turn-on eliminates need for remote lead
2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
2-channel analog preamp output (4V RMS)
JLid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
USB connection for device running TüN app (6-foot cable included)
Wiring, fuse, and hardware not included with amplifier11-5/16"W x 2-1/8"H x 6-3/4"D

4-gauge power and ground leads and an 80-amp fuse recommended

What's in the Box:

Monoblock amplifier
Power connector
14" Analog Input harness (15-pin D-Sub/4 RCA)
Subwoofer output connector
18" Speaker wire loom
"Sub" wire label
6' USB cable (Type A USB on one end and Type B USB on other end)
4 Corner caps
Corner cap tool
2 Silver thumbscrews
2 Black hex cap machine screws
2.5mm Hex wrench
3mm Hex wrench
JL Audio logo badge
Connection Guide
Registration card
