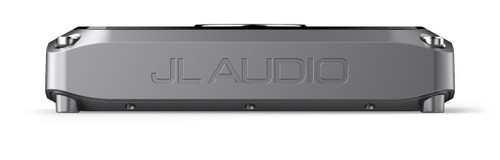

JL Audio VX700/5i 5-Channel Car Amplifier with Digital Signal Processing — 75W RMS x 4 + 300W RMS x 1
click to zoom in

have questions?

+1 (416) 745-1021

Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Installation Assistance

    We're happy to help

  • Canada Wide Delivery

    Free shipping on orders over $200*

JL Audio

JL Audio VX700/5i 5-Channel Car Amplifier with Digital Signal Processing — 75W RMS x 4 + 300W RMS x 1

$2,149.95
SKU:
VX700/5i
UPC:
699440986403
Condition:
New
Availability:
Special Order - Usually Ships in 3-5 Days
Shipping:
Calculated at Checkout
Out of stock

JL Audio VX700/5i 5-Channel Car Amplifier with Digital Signal Processing — 75W RMS x 4 + 300W RMS x 1

$2,149.95

Out of stock

JL AudioJL Audio VX700/5i 5-Channel Car Amplifier with Digital Signal Processing — 75W RMS x 4 + 300W RMS x 1 JL Audio VX700/5i 5-Channel Car Amplifier with Digital Signal Processing — 75W RMS x 4 + 300W RMS x 1

Description

About: JL Audio VX700/5i 5-Channel Car Amplifier with Digital Signal Processing — 75W RMS x 4 + 300W RMS x 1

5-Channel Class D System Amplifier with Integrated DSP, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

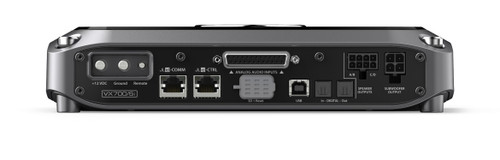

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Harness, 6 ft A/B USB Cable

Features:

Unprecedented, Onboard DSP Tuning Power!

  • Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
  • TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.

2nd-Gen NexD2™ Switching Amplifier Technology

  • Advanced, high-speed switching technology delivers reference-grade power and efficiency.
  • DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.

Ultra-Versatile Analog and Digital Inputs/Outputs


  • Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
  • Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
  • Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
  • Automatic turn-on options via signal-sensing or DC-offset sensing

JLid™ System Command and Control with Networking Capabilities

  • Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:

DRC-100 / DRC-205 (Digital Remote Controllers): Offers convenient DSP preset selection and level adjustments from the driver’s seat.
VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.


VXi-HUB Optical Network Hub: Provides network connectivity for up to six VXi amplifiers, allowing full-system DRC control and preset selection. Up to two VXi-HUBs can be daisy-chained to control up to ten VXi amplifiers.

Specifications:

Rated Continuous (RMS) Power @ 14.4 V

  • Main Channels @ 4 Ω 75 W RMS x 4
  • Main Channels @ 2 Ω 100 W RMS x 4
  • Main Channels - Bridged @ 4Ω 200 W RMS x 2
  • Subwoofer Channel @ 4 Ω 180 W RMS x 1
  • Subwoofer Channel @ 3 Ω 240 W RMS x 1
  • Subwoofer Channel @ 2 Ω 300 W RMS x 1
  • Subwoofer Channel @ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V

  • Main Channels @ 4 Ω 60 W RMS x 4
  • Main Channels @ 2 Ω 90 W RMS x 4
  • Main Channels - Bridged @ 4Ω 180 W RMS x 2
  • Subwoofer Channel @ 4 Ω 180 W RMS x 1
  • Subwoofer Channel @ 3 Ω 240 W RMS x 1
  • Subwoofer Channel @ 2 Ω 300 W RMS x 1
  • Subwoofer Channel @ 1.5 Ω N/A

General Specifications:

  • Frequency Response (Main Channels): 12 Hz - 21 kHz (+0, -1dB)
  • Frequency Response (Subwoofer Channel): 12 Hz - 1 kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Analog Inputs - Main Channels): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel): 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels): 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel): 102 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Digital Inputs - Main Channels): 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: >150 / 50 Hz
  • Damping Factor @ 2 Ω: >50 / 50 Hz
  • THD+N @ Rated Power (Main Channels): <1% @ 2 Ω per Ch.
  • THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
  • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 60 A (AFS, AGU or MaxiFuse™)

Other Features:

  • 5-channel car amplifier
  • 75 watts RMS x 4 + 180 watts RMS x 1 (at 4 ohms)
  • 100 watts RMS x 4 + 300 watts RMS x 1 (at 2 ohms)
  • 200 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
  • Class D amplifier design with NexD2™ switching amp technology

Digital Signal Processing:

  • 24-bit 96 kHz digital processing
  • DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
  • Input routing and mixing
  • Adjustable gain controls with clip indication
  • Fully adjustable high-pass, low-pass, and bandpass filters
    • Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
  • 10-band EQ
  • Phase and polarity control
  • Time alignment in 0.01 ms (1/8") increments

Connection Features:

  • Differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  • Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
    • High-level inputs — up to 16 volts RMS (about 60 watts)
    • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
  • 2-channel analog preamp output (4V RMS)
  • JLid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
  • USB connection for device running TüN app (6-foot cable included)
  • Wiring, fuse, and hardware not included with amplifier
    • 4-gauge power and ground leads and a 60-amp fuse recommended
  • 9-13/16"W x 2-1/8"H x 6-3/4"D

What's in the Box:

  • 5-Channel amplifier
  • Power connector
  • 14" Analog Input harness (25-pin D-Sub/8 RCA)
  • 18" ABCD Speaker output harness
  • 18" Subwoofer output harness
  • 6' USB cable (Type A USB on one end and Type B USB on other end)
  • 4 Corner caps
  • Corner cap tool
  • 2 Silver thumbscrews
  • 2 Black hex cap machine screws
  • 2.5mm Hex wrench
  • 3mm Hex wrench
  • JL Audio logo badge
  • Connection Guide
  • Registration card
