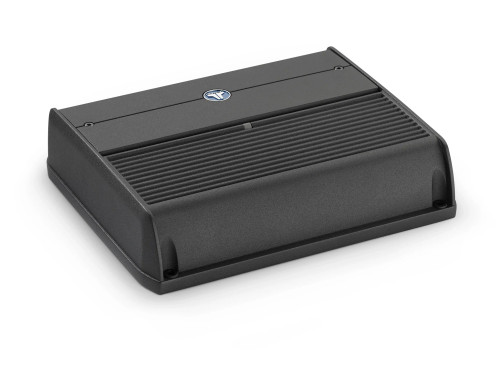

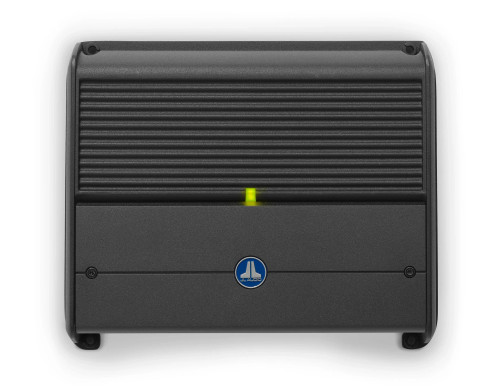

About: JL Audio XDM400/4 4-Channel Car/Marine Amplifier — 75W RMS x 4

The ultra-compact XDM400/4 packs a serious full-range punch, generating a whopping 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM400/4 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Combine the XDM400/4 with our XDM600/1 monoblock to build a stunning 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat or deck. Or, use the XDM400/4 by itself to power two satellites, plus a subwoofer.

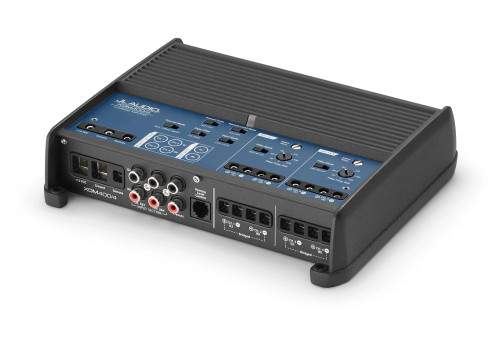

The XDM400/4 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the rear channels directly from the driver's seat or cockpit. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Features:

4-channel car/marine amplifier

75 watts RMS x 4 at 4 ohms
100 watts RMS x 4 at 2 ohms
200 watts RMS x 2 bridged at 4 ohms

Variable high- and low-pass filters (50-500 Hz, 12 dB/octave)
Class D amplifier design with NextD™ switching amp technology
Differential-balanced inputs help eliminate noise
Weather-resistant chassis: black powder-coat finish, gasketed control cover, stainless steel hardware
Optional assignable wired remote level control available
Preamp and speaker-level inputs

Switchable input filter (car/boat) eliminates interference from onboard high-current devices
Speaker-level inputs handle up to 4Vrms (about 4 watts)
Speaker-level inputs require Wire-to-RCA adapters
Speaker-level inputs feature auto turn-on via DC offset or signal sensing

Preamp outputs
Dimensions (W x H x D): 10.74" x 1.93" x 7.85" (273 x 49 x 199 mm)
Weight: 6.6 lb (2.99 kg)

Specifications:

Rated Continuous (RMS) Power @ 14.4 V:

@ 4 Ω 75 W RMS x 4
@ 2 Ω 100 W RMS x 4
Bridged @ 4 Ω 200 W RMS x 2

Rated Continuous (RMS) Power @ 12.5 V:

@ 4 Ω 60 W RMS x 4
@ 2 Ω 90 W RMS x 4
Bridged @ 4 Ω 180 W RMS x 2

Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >150 / 50 Hz
Damping Factor @ 2 Ω: >75 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 40 A (AFS, AGU or MaxiFuse™)

Signal Processing:

Filter Mode(s): Low-Pass or High-Pass
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers: Yes
Filter Defeat Function: Yes
Remote Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes: 2 or All channels
Channel Input Mode Switch: Yes (2/4 ch.)
Pass-Through Preamp Output: Buffered
Source Channel Selection for PreOuts: Yes

What's in the Box:

4-Channel car/marine amplifier
Self-adhesive JL Audio badge
2.5mm Allen wrench
Owner's Manual
Warranty information
