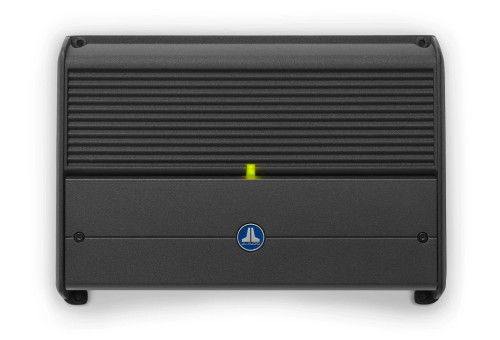

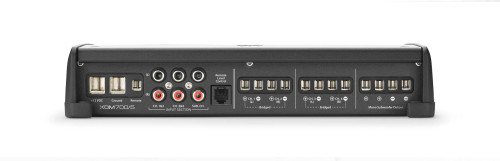

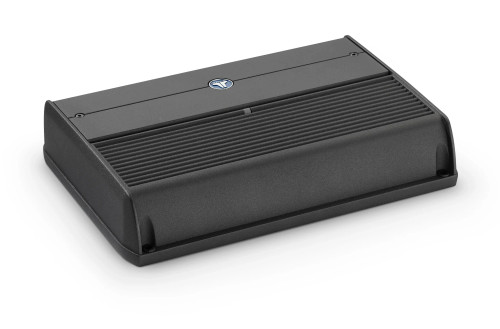

JL Audio XDM700/5 5-Channel Car/Marine Amplifier — 75W RMS x 4 + 300W RMS x 1

video

video
video gallery

have questions?

+1 (416) 745-1021

Ask an Expert

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Installation Assistance

We're happy to help
Canada Wide Delivery

Free shipping on orders over $200*

JL Audio

JL Audio XDM700/5 5-Channel Car/Marine Amplifier — 75W RMS x 4 + 300W RMS x 1

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$1,399.95

$1,099.95

SKU:: XDM700/5
UPC:: 699440986854
Condition:: New
Availability:: Usually Ships in 1-2 Days
Shipping:: Calculated at Checkout

JL Audio XDM700/5 5-Channel Car/Marine Amplifier — 75W RMS x 4 + 300W RMS x 1

$1,399.95

$1,099.95

Description
Shipping & Returns

Description

About: JL Audio XDM700/5 5-Channel Car/Marine Amplifier — 75W RMS x 4 + 300W RMS x 1

The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and fits comfortably in just about any vehicle or vessel. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also generating a solid 300 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design.

Suitable for car or boat installations, the XDM700/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Features:

5-channel car/marine amplifier
- 75 watts RMS x 4 + 180 watts RMS x 1 at 4 ohms
- 100 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
- 200 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
Ch 1 & 2: variable high-pass filter (50-500 Hz, 12 dB/octave)
Ch 3 & 4: variable high-pass or bandpass filter (50-500 Hz, 12 dB/octave)
Sub channel: low-pass filter (50-500 Hz, 12 or 24 dB/octave)
Class D amplifier design with NextD™ switching amp technology
Differential-balanced inputs help eliminate noise
Weather-resistant chassis: black powder-coat finish, gasketed control cover, stainless steel hardware
Optional assignable wired remote level control available
Preamp and speaker-level inputs
- Switchable input filter (car/boat) eliminates interference from onboard high-current devices
- Speaker-level inputs handle up to 4Vrms (about 4 watts)
- Speaker-level inputs require Wire-to-RCA adapters
- Speaker-level inputs feature auto turn-on via DC offset or signal sensing
Dimensions (W x H x D): 10.23" x 2.05" x 7.09" (260 x 52 x 180 mm)
Weight: 6.15 lb (2.79 kg)

Specifications:

Rated Continuous (RMS) Power @ 14.4 V:

Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V:

Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

Frequency Response (Main Channels): 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel): 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels): >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >150 / 50 Hz
Damping Factor @ 2 Ω: >75 / 50 Hz
THD+N @ Rated Power (Main Channels): <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 60 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s): Channels 1 & 2 (front): High-Pass only
Filter Slope(s): Channels 1 & 2 (front): 12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front): 50 Hz - 5 kHz
Filter Mode(s): Channels 3 & 4 (rear): High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 (rear): 12 dB/octave
Filter Frequency Range: Channels 3 & 4: 50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel: Low-Pass only
Filter Slope(s): Subwoofer Channel: 12/24 dB/octave
Filter Frequency Range: Subwoofer Channel: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers: Yes
Filter Defeat Function: Yes
Infrasonic Filter: Subwoofer Channel: none
Remote Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes:Sub Ch. or All Channels
Channel Input Mode Switch: Yes (2/4/6 ch.)
Pass-Through Preamp Output: None
Source Channel Selection for PreOuts: N/A

What's in the Box:

5-Channel car/marine amplifier
Self-adhesive JL Audio badge
2.5mm Allen wrench
Owner's Manual
Warranty information
