JL Audio

JL C3-600cw 6" 75W RMS Convertible Component Woofer

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$279.95

SKU:: C3-600cw
UPC:: 699440990332
Condition:: New
Availability:: Special Order - Usually Ships in 3-5 Days
Shipping:: Calculated at Checkout

JL C3-600cw 6" 75W RMS Convertible Component Woofer

$279.95

Description
Shipping & Returns

Description

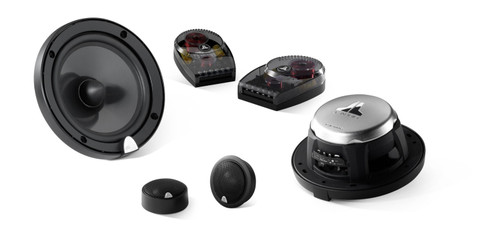

About: JL C3-600cw 6" 75W RMS Convertible Component Woofer

6-inch (150 mm) Convertible Component Woofer (Single)

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.

The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.

A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold individually.

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).

General Specifications:

Continuous Power Handling (RMS): 75 W
Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
System Efficiency: 89.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 50 Hz - 25 KHz ± 3 dB

Woofer Physical Specifications:

Frame Outer Diameter: 6.21 in. / 157.7 mm
Grille Tray Outer Diameter: 6.46 in. / 164.1 mm
Motor Outer Diameter: 4.08 in. / 103.6 mm
Frontal Coaxial Tweeter Protrusion*: 0.81 in. / 20.6 mm
Frontal Grille Protrusion**: 1.03 in. / 26.2 mm
Mounting Hole Diameter: 5.00 in. / 127 mm
Mounting Depth: 2.49 in. / 63 mm
*Frontal coaxial tweeter protrusion measured from mounting surface
**Frontal grille protrusion measured from mounting surface
