Descriptions

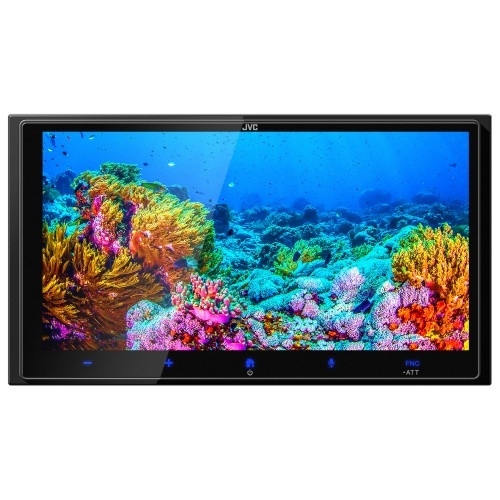

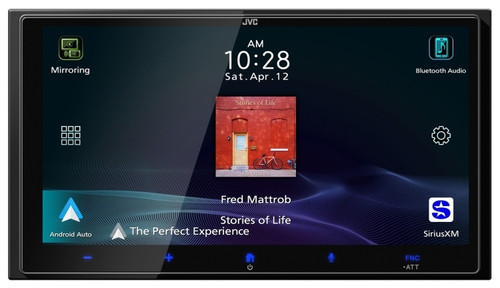

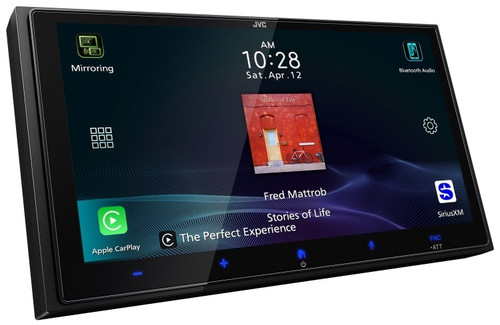

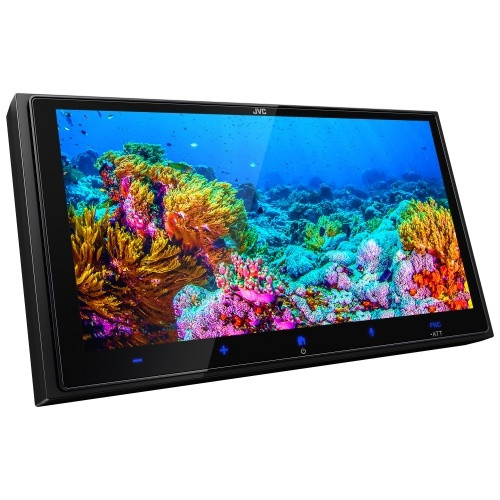

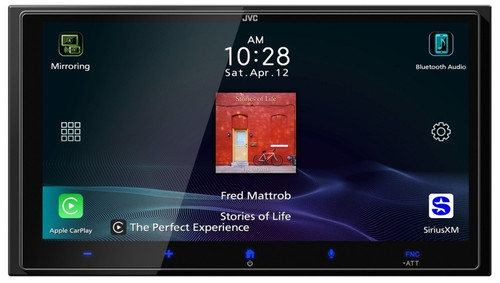

About: JVC KW-M795BW 6.92" Digital Multimedia Receiver with Apple CarPlay and Android Auto

Apple CarPlay® – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

Wireless Mirroring for Compatible Smartphones

By installing the “CarbitLink-EasyConnection” app, your mobile phone is seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram.

*Selected mobile phones only

HDMI™ Mirroring for Compatible Smartphones

Display your smartphone screen on the KW-M795BW’s display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone-specific third-party adapter are required (sold separately).

High Definition Display (1280 x 720)

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).

*Available features may vary depending on the vehicle. The iDatalink Maestro RR is sold separately by Automotive

2-Camera Inputs

Enable users to add a rear facing camera and additional front facing camera (sold separately).
Additionally this receiver is equipped with a front camera left/right switching function, allowing you to use the optional (sold separately) KV-CM30 as a front camera.

HD Rear Camera Input

An optional High Definition camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

SiriusXM Ready
(optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

High Current 2.1A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.

3.0V High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 3.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Remote Control (Optional)

Remote control (RM-RK259) is optionally available.

Specifications:

• Digital multimedia player with AM/FM tuner
• Plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
• 6.9" capacitive touchscreen HD display
• Waze-ready with Apple CarPlay or Android Auto
• Fits double-DIN (4" tall) dash openings

Smartphone Features:

• Display and command of select music, navigation, and other apps with iPhone and Android
• Wired or wireless Android Auto compatible
• Compatible with Google Assistant voice control when using Android Auto
• Wired or wireless Apple CarPlay compatible
• Siri Eyes Free voice control for select iPhones
• Wired USB mirroring for select Android devices
• Wired micro HDMI mirroring for select smartphones (cable and adapter sold separately)
• Built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• Built-in iPhone and rapid Android charging via USB port

Audio/Visual Features:

• 13-band graphic EQ with 7 presets
• Digital time alignment
• 2-way and 3-way crossover settings

Expandability:

• Compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

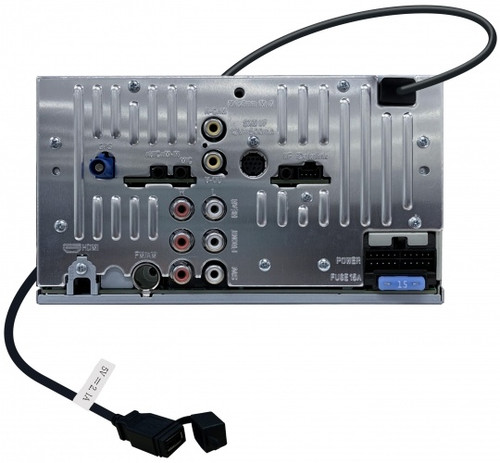

• Inputs: rear USB-A input, HD camera input, rear micro HDMI input, rear analog 3.5 mm A/V input (configurable for a second camera input)
• Outputs: rear analog video output (RCA), 6-channel preamp outputs (3-volt front, rear, sub)

Other Information:

• Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• Built-in amplifier (22 watts RMS/50 peak x 4 channels)
• Compatible with most factory steering wheel audio controls (adapter required)
• Works with iDatalink Maestro RR and RR2 modules
• Retains factory features in a wide selection of vehicles
• Displays engine performance data on touchscreen

What’s in the Box:

• Digital multimedia receiver (15A fuse)
• Wiring harness
• Microphone (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• Mounting clip (for microphone)
• Self-adhesive bracket (for microphone)
• GPS antenna (attached 10' cable terminated by a SMB connector)
• 6 Counter-sunk phillips ISO-screws (M5x8mm)
• 6 Pan-head phillips ISO-screws (M5x8mm)
• Quick Start Guide
• Warranty card
