Descriptions

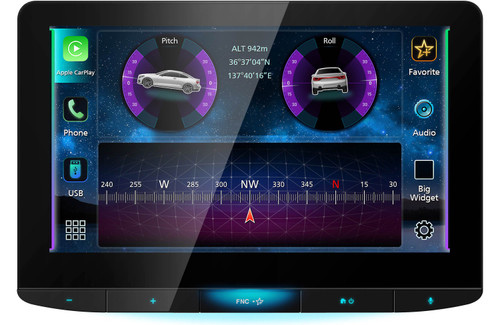

About: JVC KW-Z1000AW 10.1" HD Touchscreen Double Din Direct Replacement Digital Multimedia Receiver

Direct Replacement

Seamless OEM Integration

10.1 inch HD Floating Screen for a Bold, Modern Display with Enhanced Visibility

Get ready to transform your factory system with the JVC Direct Replacement 10.1 Inch Floating Panel Receiver. No dash kits or modifications are needed for this seamless, high-tech upgrade.

Using the cutting-edge Maestro APX parts, the stock 8.4", 8.0", 7.0" 4.3" and 3" OEM screen is removed and replaced with a stunning 10.1 inch HD floating display. This larger screen creates a more immersive viewing experience while maintaining a sleek and factory-like fit.

The receiver chassis is remotely mounted where the factory audio components were, ensuring a clean and professional installation. With the Maestro RR or RR2 module and adapter harness, all OEM radio controls are reprogrammed to work effortlessly with the JVC Direct Replacement Receiver, preserving all key factory features while adding next-level performance and cutting-edge technology.

Upgrade your ride with a bigger screen, smarter controls, and a premium in-car experience like never before.

Designed for popular vehicles from Ford™, GM™, Chrysler™, Nissan™, Infiniti™, and more, this new lineup ensures a hassle free, no compromise upgrade with premium performance and factory integration.

Installation

2-Way Installation

Struggling with limited space behind the panel? Our innovative solution enables vertical sideways installation, making it easier than ever to fit aftermarket panels in vehicles with restricted depth. Enjoy a seamless, hassle-free upgrade for a wider range of models!

Smartphone Integration

Apple CarPlay® – Connect Wirelessly or Via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Some features, applications, and services are not available in all areas.

Apple CarPlay – Split Screen Support

You can view and operate both Apple CarPlay and JVC source in the same screen.

Android Auto™ – Connect Wirelessly or Via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road

*Compatible Android phone and compatible active data plan required.

*Some features and devices may not be available in all countries. Subject to availability.

Android Auto – Split Screen Support

You can view and operate both Android Auto and JVC source in the same screen.

Wireless Mirroring for Compatible Smartphones

Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

*Selected models only

HDMI™ Mirroring For Compatible Smartphones

Display your smartphone screen on the KW-Z1000AW’s display via an HDMI cable and third party adapter.

*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).

Display

High Definition Display (1280 X 720)

The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

Optical Bonding Technology

The optical bonding technology minimizes the refractive light index by bonding the liquid crystal module and clear panel. It suppresses the reflection of the screen and maintains high visibility. In addition, since optical bonding does not have an air layer between the liquid crystal module and the clear panel, display visibility is not impaired by internal condensation, further enhancing its durability.

Dynamic GUI

Various information including time, photos, album art images, or iDatalink Maestro™ and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.

Live Wallpaper

Synchronize background visual and color with music.

Safe Driving

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).

HD Front / Rear Camera Input

An optional High Definition camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

4-Camera Input

Enables users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.

Sound Optimization

High-Resolution Audio Playback

You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.

K2 Technology for Enhanced Digital Sound Quality

K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting

Internet Radio / Digital Radio

SiriusXM READY

(optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

SiriusXM 360L READY

SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.

*To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi. In addition, “360L IP Connection” in SETUP has to be set to ON.

 *SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.

Built-In HD Radio Tuner

HD Radio is a Digital technology that allows a radio station to transmit more information in the same radio wave, enabling higher quality sound and additional content. HD Radio technology makes AM Stations have FM Station-like sound quality, while FM Stations are broadcast with CD-like sound quality. Unlike typical FM or AM transmission, HD Radio has crystal clear reception with low noise and no audio distortion.

General

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

4.0v High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

Detachable USB with Current 3.0A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 3.0A. Single rear USB port with detachable extension cable included.

*Compatibility depends on the smartphone

JVC Portal App Compatible

Display the image data saved on your smartphone on the KW-Z1000AW with JVC Portal App now available for both iOS and Android. You can set your favorite image on the wallpaper of the receiver and enjoy the slide show.

JVC Remote Control App

Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.

Remote Control (Optional)

Remote control (RM-RK259) is optionally available.

General features:

• Direct Replacement digital multimedia receiver
• works with iDatalink Maestro APX kits for select vehicles
• requires the iDatalink Maestro RR or RR2 interface module
• requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)
• plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
• 10.1" capacitive and optically bonded "floating" touchscreen HD display
• HD Radio tuner built-in
• Waze-ready with Apple CarPlay or Android Auto
• modular chassis design

 Smartphone features:

• wired and wireless Android Auto compatible
• compatible with Google Assistant voice control when using Android Auto
• wired and wireless Apple CarPlay compatible
• Siri voice control for select iPhones
• wireless mirroring for select Android devices
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• rapid Android charging via USB port

 Audio features:

• 13-band graphic EQ
• time alignment
• Sound Lift processing virtually lifts the sound of speakers installed in lower locations to ear level
• 2- or 3-way crossover network

 Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• works with SiriusXM with 360L for satellite and streaming content using receiver's WiFi (streaming not available if Apple CarPlay or Android Auto are in use)
• compatible with Kenwood CMOS-740HD HD backup camera
• inputs (chassis): USB-C input, four camera inputs (HD front or rear), HDMI Type-D input
• outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other information:

• built-in amplifier (22 watts RMS/50 peak x 4 channels)
• works with iDatalink Maestro RR or RR2 modules
• retains factory features in a wide selection of vehicles
• displays engine performance and pitch-and-roll data on display

What's in the box:

• 10" Touchscreen monitor
• Source unit
• Monitor bracket
• Preout/Aux harness
• Vide/Camera harness
• USB-C to USB-A adapter
• 40" USB-C extension cable
• GPS antenna (attached 11.5' cable terminated by a proprietary connector)
• Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• Self-adhesive pad
• 4 Large screws
• 3 Small screws
• Quick Start Guide
