6% Off

JVC KW-Z1001W 10.1" HD Touchscreen Double Din Digital Multimedia Receiver

JVC

JVC KW-Z1001W 10.1" HD Touchscreen Double Din Digital Multimedia Receiver

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$1,648.00

$1,749.00

6% Off

SKU: KW-Z1001W

Condition: New

Availability: Special Order - Usually Ships in 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Shipping & Returns

Descriptions

About: JVC KW-Z1001W 10.1" HD Touchscreen Double Din Digital Multimedia Receiver

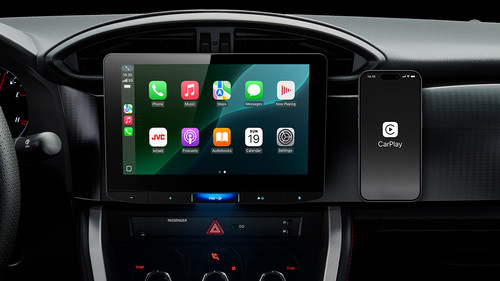

Apple Carplay® – Connect Wirelessly or Via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Apple Carplay – Split Screen Support

You can view and operate both Apple CarPlay and JVC source in the same screen.

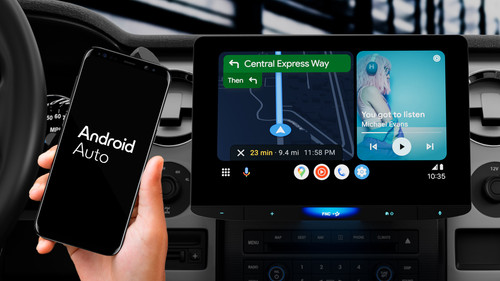

Android Auto™ – Connect Wirelessly or Via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road

Android Auto – Split Screen Support

You can view and operate both Android Auto and JVC source in the same screen.

Wireless Mirroring for Compatible Smartphones

Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

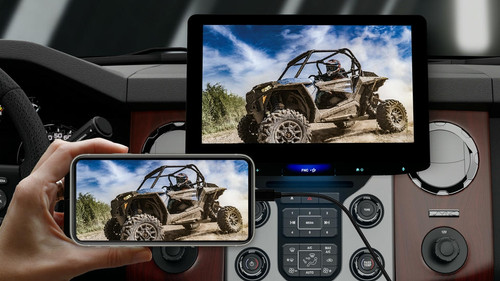

Hdmi™ Mirroring for Compatible Smartphones

Display your smartphone screen on the KW-Z1001W’s display via an HDMI cable and third-party adapter.

High-Definition Display (1280 X 720)

The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

Optical Bonding Technology

The optical bonding technology minimizes the refractive light index by bonding the liquid crystal module and clear panel. It suppresses the reflection of the screen and maintains high visibility. In addition, since optical bonding does not have an air layer between the liquid crystal module and the clear panel, display visibility is not impaired by internal condensation, further enhancing its durability.

Dynamic GUI

Various information including time, photos, album art images, or iDatalink Maestro™ and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.

Live Wallpaper

Synchronize background visual and color with music.

Adjustable 4-Way Display Position

Fully adjustable display allows you to change the height, angle, and depth for easy vehicle fitment.

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).

HD Front / Rear Camera Input

An optional High-Definition camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

4-Camera Input

Enables users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.

High-Resolution Audio Playback

You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.

K2 Technology for Enhanced Digital Sound Quality

K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting

Built-In HD Radio Tuner

HD Radio is a Digital technology that allows a radio station to transmit more information in the same radio wave, enabling higher quality sound and additional content. HD Radio technology makes AM Stations have FM Station-like sound quality, while FM Stations are broadcast with CD-like sound quality. Unlike typical FM or AM transmission, HD Radio has crystal clear reception with low noise and no audio distortion.

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

4.0v High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

JVC Portal App Compatible

Display the image data saved on your smartphone on the KW-Z1001W with JVC Portal App now available for both iOS and Android. You can set your favorite image on the wallpaper of the receiver and enjoy the slide show.

Features:

Monitor

High Definition Monitor: Yes
Screen Size: 10.1"W HD Screen
Touch Panel: Capacitive / Bonding
Gesture Touch Control: Yes
Key Illumination Color: Variable
Dimmer: Yes
Multilingual Display: Yes[4]
Live Wallpaper: Yes

Media Playback

MP3 Compatible with Tag: USB
WMA Compatible with Tag: USB
WAV Compatible with Tag: USB
AAC Compatible with Tag: USB
FLAC Compatible with Tag: USB
H.264 Compatible: USB
WMV Compatible: USB
MPEG 1/2 Compatible: USB
MPEG 4 Compatible: USB
AVI/MKV Compatible: USB

Bluetooth Control

Built-in Bluetooth[1]: Yes (Version 5.2, Wired-Mic included)
Hands Free Call: Yes (HFP1.7)
2 Phones Full-Time Connection: Yes
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
5 BT-Audio Connection: Yes
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Alphabetical Search for Phone Book: Yes

Wi-Fi Control

Built-in Wi-Fi: Yes

Android Control

Android Auto[2]: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via WiFi)

iPod/iPhone Control

CarPlay[3]: Yes (via Wi-Fi or USB)

USB

USB Port: x 1 (Type-C)
Position: Rear
USB Power Supply: 5V/3A(USB type-C Current 3A) or 5V/1.5A(USB BC1.2)

Radio Tuner

Built-in HD Radio: Yes
SiriusXM Ready: Yes *SiriusXM 360L Ready
Radio Broadcast Data System (RBDS): Yes
Preset Stations: 20(FM:15ch, AM:5ch)
Auto Memory Entry: Yes
FM

Frequency Range 87.9 - 107.9MHz

Frequency Range 530-1,700kHz

Audio

Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ Yes (13-Band Graphic EQ)

Preset EQ: Yes (8Preset + 4user)
Bass Boost: Yes

High-Pass Filter/Low-Pass Filter Yes/Yes
3-Way X'over: Yes
High-Resolution Audio: Yes
K2 Technology: Yes
Space Enhancement: Yes
Sound Response: Yes
Sound Lift: Yes
Volume Link EQ: Yes
Time Alignment: Yes

Inputs and Outputs

AV Input: RCA (AV-IN or Camera Input switchable)
Video Out: RCA
HDMI Terminal: Yes
Camera Input: Max 4 inputs (including AV- IN's assignable input)
Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance: 4V
Subwoofer Output with Level/Frequency Control: Yes

General

iDatalink Maestro Ready: Yes
JVC Portal App: Yes
Remote Control Application: Yes
Face Type

Viewing Angle Adjustment Yes (0 - 20 degree, default : 0 degree) 4 steps

Wireless Remote Control Optional (RM-RK259K)
Steering Remote Control Ready: Yes
Dimensions: (W x H x D)
Installation Size Chassis: 7" x 2" x 6-1/4" (178 x 50 x 158 mm) Monitor: 10-5/16" x 7-1/8" x 1-9/16" (262 x 176 x 41 mm)
Weight 5.6 lbs: (2.5kg)
Unit weight in individual package: 3.5kg
