Descriptions

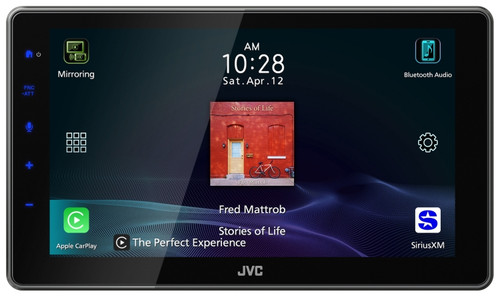

About: JVC KW-Z900W 9" HD Floating Screen with Apple CarPlay and Android Auto

Apple CarPlay® – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

Wireless Mirroring for Compatible Smartphones

By installing the “CarbitLink-EasyConnection” app, your mobile phone is seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram.

HDMI™ Mirroring for Compatible Smartphones

Display your smartphone screen on the KW-Z900W’s display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone-specific third-party adapter are required (sold separately).

High Definition Display (1280 x 720)

The large-screen 9.0” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

360°Fully Adjustable Floating Mechanism

The fully adjustable display allows drivers to rotate and tilt the screen 360, offering easy angle adjustments with tilt, left and right motion for optimal viewing.

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).

2-Camera Inputs

Enable users to add a rear facing camera and additional front facing camera (sold separately).
Additionally this receiver is equipped with a front camera left/right switching function, allowing you to use the optional (sold separately) KV-CM30 as a front camera.

HD Rear Camera Input

An optional High Definition camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

SiriusXM Ready (optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

Compact Rear Chassis

Despite a large 9" display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.

High Current 2.1A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.

3.0V High-Voltage 3 Pre-Outs

Equipped with three RCA terminals for pre-outs with 3.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Remote Control (Optional)

Remote control (RM-RK259) is optionally available.

Specifications:

• Digital multimedia receiver with AM/FM tuner (does not play CDs)
• 9" floating capacitive touchscreen displayWi-Fi certified
  • Ball-joint design for vertical and horizontal tilt adjustments for better visibility
• Customizable display GUI, background, and wallpaper
• Plays high-res FLAC and WAV (up to 24-bit/192 kHz) files on USB drives
• Receiver chassis fits single-DIN dash openings

Smartphone Features:

• Compatible with Apple CarPlay or Android Auto (wireless or wired)
• Wireless and wired mirroring for Android and iPhone; USB with Touch Control for Android only

Bluetooth Features:

• Hands-free calling and audio streaming with dual phone connection

Audio/Video Features:

• Plays USB memory devices (see Details for full capabilities)
• 13-band graphic equalizer with digital time alignment
• Subwoofer level, phase, and low-pass crossover controls
• 2- and 3-way crossover configurations

Expandability:

• Compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• Inputs: rear USB input, rear A/V input (mini), rear microHDMI input, two camera inputs (including A/V in)
• Outputs: rear video output (RCA), 6-channel preamp outputs (3-volt front, rear, subwoofer)

Other Info:

• Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• Built-in internal amp (22 watts RMS/50 peak x 4 channels)
• Compatible with most factory steering wheel audio controls (adapter required)
• Works with iDataLink Maestro module
  • Retains factory features in a wide selection of vehicles
  • Displays engine performance and other vehicle data on touchscreen
• Optional wireless remote (sold separately)

What's in the Box:

• 9" Touchscreen monitor
• Source unit
• Wiring harness
• GPS antenna (attached 11.5' cable terminated by a SMB connector)
• Microphone (attached 10' cable terminated by a right-angle mono 3.5mm connector)
• Mounting clip (for microphone)
• Self-adhesive bracket (for microphone)
• 4 Pan-head ISO-mount screws
• 4 Flat-head ISO-mount screws
• Startup Guide
• Warranty Information
• Correction Sheet
