Descriptions

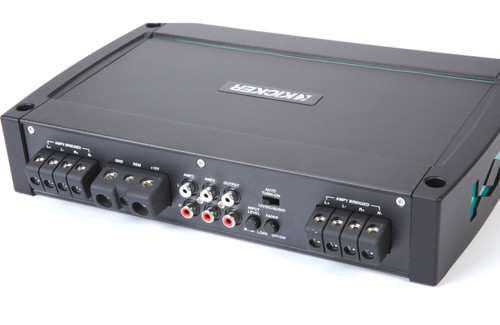

About: Kicker 48KXMA8004 4-Channel Marine Amplifier - 100W RMS x 4

The KXMA 800-watt, four-channel amplifier is one of the most flexible marine power pieces available today. This KXMA amplifier delivers as much as 200 watts into four full-range channels, or 400 watts into two sets of bridged channels. See below for more details.

Real Marine™

The KICKER REAL MARINE™ standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA)-Series amp comes complete with anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards and ABYC/NMMA-compliant power connections. KICKER products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why our products truly are "REAL MARINE™."

KXMA800.4 Marine Amplifier

Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as an 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full-range RCA output allows you to easily add another amplifier without running new signal cable to your KICKER KMC Media Center.

Features:

• Class D Amplifier
• Gain Control With "Gain Match" LED Indicator
• FIT2™ (Fail-safe Integration Technology) Circuitry
• Variable 24dB Crossover
• DSP-Controlled Preamp
• KickEQ™ 6dB Variable Bass Boost
• ABYC/NMMA-Compliant Power Terminals
• Conformal-Coated Circuit Boards
• Easy Access to Settings behind Gasket-Sealed Cover Panel
• Black Anodized Aluminum Chassis
• Top-Mounted, Teal LED Light Pipe
• Stainless-Steel Mounting Hardware Included

Specifications:

• 4-channel marine amplifier
• 100 watts RMS x 4 at 4 ohms (200 watts RMS x 4 at 2 ohms)
• 400 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
• Class D amp technology
• Gain knobs also function as clip lights
• Amp 1:
  • Variable high- or low-pass filter (10-500 Hz, 24 dB/octave); 10x switch
• Amp 2:
• Variable bass boost (0-6 dB at 40 Hz) on all channels
• Variable high-pass filter (10-500 Hz, 24 dB/octave)
• Variable low-pass filter (40-500 Hz, 24 dB/octave); 10x switch
• Bandpass engages both high- and low-pass filters
• Variable bass boost (0-6 dB at 40 Hz) on all channels
• Weather-resistant conformal-coated circuit boards
• Front-mounted controls protected behind gasket-sealed fold-down door
• Fail-Safe Integration Technology eliminates noise from your vehicle's electrical system
• Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
• Wiring, hardware, and fuse not included with amplifier
• 4-gauge power and ground wires and a 120-amp fuse recommended
• Dimensions (W x H x D): 8-5/16" x 2-1/8" x 11-9/16"
