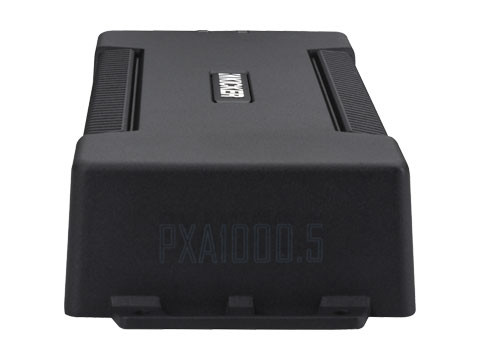

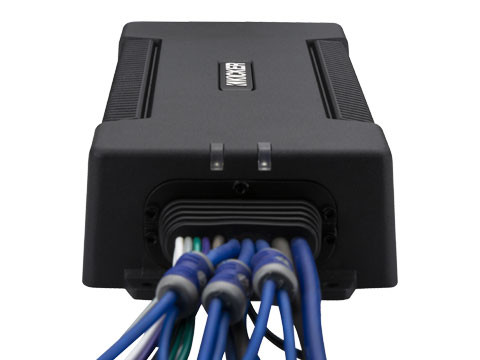

About: Kicker 48PXA10005 5-Channel Powersports / Marine Amplifier — 100W RMS x 4 at 4 Ohms + 600W RMS x 1 at 1 Ohm

Completely re-engineered, the PXA1000.5 is a single-amp solution to an entire system! It supplies big full-range power, in a compact, waterproof design for the trickiest installs.

Enhanced Tuning for PXA1000.5 and PXA400.4 Amps

Tune these PXA Multi-Channel Amps from your PC for an enhanced listening experience! The PXAPT DSP Programming Adapter offers that capability by connecting you to KICKER Powersports Tune™ software, allowing you to control EQ and crossovers independently per channel, or combine them with channel linking. Added parametric EQ dials in your system the way you want to hear it. Advanced crossover controls let you pick your topology, slopy, and frequency of choice. Create and save tunes for multiple applications.

Feature:

• Waterproof amplifier design with IP66 and IP67 certifications
• Ideal for UTVs, off-road vehicles, hot rods or space-challenged vehicles
• High-efficiency Class-D technology
• Huge full-range power from a small footprint – rated at 1400 watts Dynamic Power!**
• Includes subwoofer channel stable at one-Ohm
• Dual turn-on modes (choice of DC offset or 12v trigger)
• Includes inline power and ground couplers that need no soldering or crimping
• Stainless-steel mounting hardware included

Specifications:

• Power (watts/ch), 2 Ohm Stereo: 150 x 4
• Power (watts/ch), 4 Ohm Stereo: 100 x 4
• Power (watts/ch), 1 Ohm Mono: 600 x 1 (sub ch)
• Power (watts/ch), 2 Ohm Mono: 500 x 1 (sub ch)
• Power (watts/ch), 4 Ohm Bridged Mono / 4 Ohm Mono (Sub): 300 x 2 (amp 1 and 2);300 x 1 (sub ch)
• Dynamic Power (watts)**: 1400
• Frequency Response (Hz, +0/-3dB): (FR) 10-20k; (sub) 25-200
• Crossovers: 24dB/octave hi-pass 80/120Hz (amp1 and amp2); lo-pass 60/80/100/120Hz (sub only) Subsonic – 25Hz, 24dB/octave (sub only)
• Bass Boost: selectable 0/+6dB, centered at 40Hz (sub channel only)
• Dimensions (in, mm): W: 4-1/2, 114.7, H: 1-15/16, 50, L: 12-7/8, 327.5
• CXARC Remote capable (sold separately): Yes (sub channel only)

**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer

What's in the Box:

• Waterproof IP66/IP67 power sports amplifier
• 2 DC power couplers
• Stainless-steel mounting hardware
• Customer information Card
