Descriptions

About: Kicker 50HDS144 Speaker & Amp Kit for Select 2014-Up Harley Davidson Motorcycles

Add great sound to your 2014 - 2023 Harley-Davidson Street/Electra/Ultra Glide fairing with this complete audio lid kit. It’s a complete audio solution loaded with waterproof KICKER 6-1/2-inch Coaxial Speakers (2 Ohm) and pre-measured, terminated speaker harnesses. Specifically designed for Harley-Davidson 2014 - 2023 Street/Electra/Ultra Glide Fairings.

Features:

• 100% plug-and-play installation
• Everything you need in one box
• 6-1/2" redesigned high-performance, weather-proof coaxial speakers (pair)
• Polypropylene woofer cones resist moisture
• Super-efficient, 20mm neo-titanium-dome tweeters, bridge-mounted
• Neodymium magnet structure reduces weight for superb bike balancing
• Extreme volume level for clear music reproduction through helmets
• Small-footprint, high-power amp with very low current draw
• Custom-fit mounting bracket for amp
• Coaxials - Max Recommended Amp Power (Peak/RMS): 120W/60W
• Redesigned Amp - RMS Power (watts/ch.) @14.4 Volts, 2 Ohms: 75x4

Product Highlights:

• Amplifier/speaker system for select 2014-up Harley-Davidson motorcycles
• Package includes 4-channel amplifier, pair of 6-1/2" speakers, grilles, and wiring harnesses

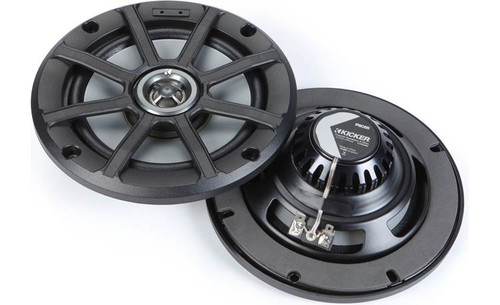

PSC652 Speakers:

• 6-1/2" polypropylene woofer with Santoprene rubber surround
• Bridge-mounted 3/4" titanium dome tweeter
• Grilles included
• Sensitivity: 92.5 dB
• Impedance: 2 ohms
• Frequency response: 40-20,000 Hz
• Handles up to 60 watts RMS (120 watts peak power)
• Top-mount depth: 2"

PXA300.4 Amplifier:

• 50 watts RMS x 4 at 4 ohm (75 watts RMS x 4 at 2 ohm)
• frequency response: 10-20,000 Hz
• high-pass filter (selectable off, 60, 80, or 120 Hz at 24 dB/octave)
• weather-resistant design
• The factory radio will need to be re-flashed by the dealership or shop in order for it to recognize the amplifier.

What's in the Box:

This package contains 2 individually boxed items along with parts in the main box:

Main Box:

•  Amplifier mounting plate
• 7' Wiring harness w/ inline 20A mini ATC fuse
• Dummy load plug
• Three 24mm hex-socket screws
• Four 12mm hex-socket screws
• 3 Flat washers
• 3 Large Nylock nuts
• 4 Small Nylock nuts
• Two 8" wire-ties
• Six 6" wire-ties
• Installation guide

• HDSG Grilles:
• 2 "Bat Wing" Grilles
• Installation guide

KPX300.4 Amplifier:

• Four-channel amplifier
• 12" Input harness (8-pin Molex plug on one end and 4 female RCAs on other end)
• 6" Speaker output/remote turn-on harness (10-pin Molex plug)
• Power and ground terminal block
• Four 5/8" Screws
• Switch cover with 3M adhesive backing

PSC652 Speakers:

• Two 2-way speakers
• 2 Grilles (installed)
• 2 Kicker logo grille badges
• Two 12" Lengths of speaker wire (tinned bare wire on one end and female quick slides on the other)
• 4 Red plastic crimp connectors
• Eight 1" Self-tapping screws
• 8 Speed clips
• Manual
