Descriptions

About: Kicker 51KSS6904 KS Series 6x9" 150W RMS Component Speaker System

KICKER KS-Series Speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.

Experience your music as a component system with separate tweeters, or as a high-end coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power.

Features:

• High power handling
• Silk-dome tweeters for a smooth sound
• Polypropylene woofer and tough rubber surrounds
• Thin-mount design easily fits behind factory grilles
• Four tweeter mounting options
• Articulating tweeter pod included
• Smaller crossover makes mounting even easier
• Grilles included

Specifications:

• Component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
• 6"x9" polypropylene woofer cone with rubber surround
• 1" silk dome tweeter with four mounting options
• External crossover network with 3 tweeter levels (0, +4.5, +9 dB)
• Handles up to 150 watts RMS (300 watts peak power)
• Can be installed as separate components or as 2-way speakers
• Frequency range: 30-21,000 Hz
• Sensitivity: 92 dB
• Woofer top-mount depth: 2-15/16"
• Impedance: 4 ohms
• Grilles included

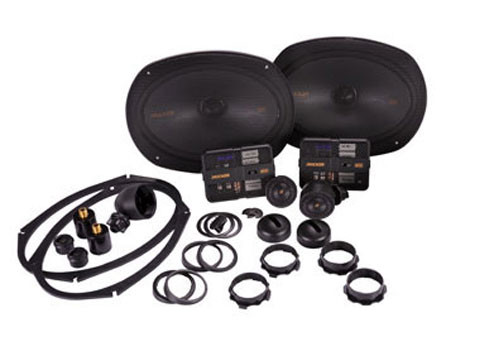

What’s in the Box:

• Two KSS690 Woofers
• Two phase plugs (installed)
• Two 1" Tweeters (each with 6" Wire attached)
• 2 Woofer mounting brackets
• 2 Woofer bottom mount spacers
• Two woofer grilles
• Two grille mounting rings
• Two crossovers
• Two upper tweeter mounting posts
• Two lower tweeter mounting posts
• Two tweeter housings
• Two tweeter housing washers
• Two flush mount rings (tweeter)
• Two front angle rings (tweeter)
• Two back angle rings (tweeter)
• Two short mounting nuts (tweeter)
• Two long mounting nuts (tweeter)
• Two surface mount pods
• Two pod nuts
• Tweeter tool
• Two 10" Zip ties
• 2 Adhesive backed foam pads
• Grille putty
• Four red plastic wire caps
• Two M4x7mm Machine screws
• Twelve 1-1/8" Screws
• Quick-Start guide (English/ Spanish/ German/ French)
• Woofer template
