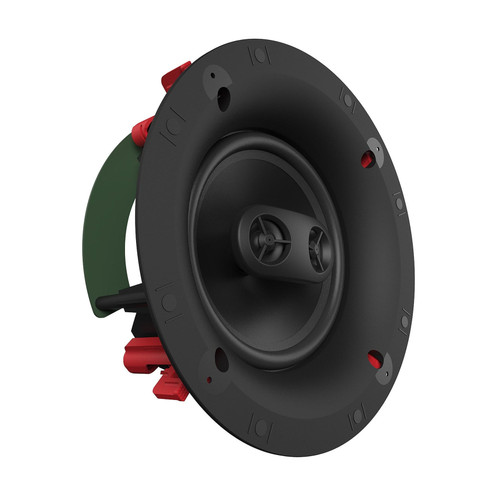

About: Klipsch CS-16CSM 6.5" In-Ceiling Speaker with 1" Polymer Soft Dome Tweeter

Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-16CSM features a 6.5” Polymer woofer and dual 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Good Sound For Any Room

Using the same design principles of our premium architectural and box speaker lines, the all new Klipsch Custom series delivers true Klipsch power and performance to any budget. With a 6.5” dual voice coil polymer woofer and dual .75” polymer dome tweeters, the CS-16CSM brings dynamic, powerful, detailed Klipsch sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.

Exclusive Patented Sky Hook® Cinch Installation System

This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.

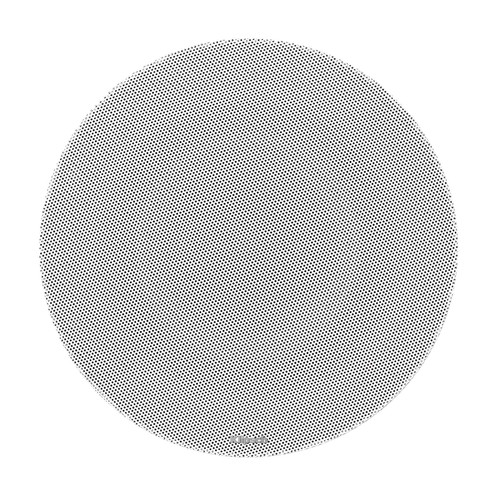

All New, Bezel-Free Magnetic Grille

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Features:

• 6.5” Polymer woofer
• Dual 1” Polymer tweeter
• Patented Sky Hook® Tool-Free Installation System
• Bezel-Free Magnetic Grille

Specifications:

• Frequency Range: 65Hz - 20kHz +/- 3dB
• High Frequency Driver: Dual .75" (1.9cm) Polymer Dome Tweeters
• Low Frequency Driver: 6.5” (16.51cm) Dual Voice Coil Polymer Woofer
• Sensitivity: 91 dB @ 2.83V / 1m
• Power Handling: 40W RMS / 160W Peak
• Impedance: 8 Ohm Compatible
• Enclosure Material/Type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
• Mounting Depth: 4.34” (11.03cm)
• Cutout Dimensions: 8.3” (21.1cm)
• Product Weight: 7 lbs (3.18kg)
• Included In Box: Round Magnetic Grille
• Install Kit: IK-650-C II (Sold Separately)
• Fire Rated Enclosure: ME-650-C (Sold Separately)
• Built From: 2017
