Descriptions

About: Klipsch DS-160CDT 6.5" In-Ceiling Speaker with 1" Silk Dome Tweeter

Featuring the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CDT features a 6.5” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook™ patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Horn-Loaded Performance

Using the same Tractrix® horn technology and design principles found in Klipsch’s premium architectural and box speaker lines, the Designer Series delivers true Klipsch power and performance. Featuring a 6.5” polypropylene woofer and a 1” silk dome tweeter mated to a round Tractrix® horn, the DS-160CDT produces dynamic, powerful, and detailed sound—perfect for distributed audio, home theater, or 2-channel systems.

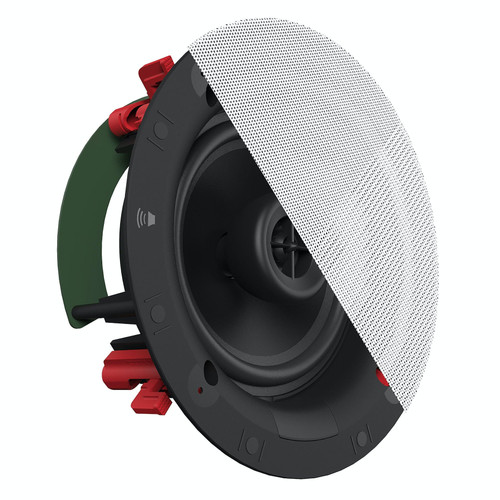

Exclusive Patented Sky Hook® Cinch Installation System

This innovative system automatically engages the dog legs when the speaker is inserted into the cutout, applying a preset clamping force to prevent overtightening. For uneven surfaces, a simple quarter-turn adjustment ensures a flush, secure fit, reducing installation time by up to 75%.

Controlled Dispersion Technology™ (CDT)

CDT technology allows both the tweeter and woofer to be aimed up to 15° in any direction, helping maintain accurate on-axis sound performance from nearly any listening position.

All New, Bezel-Free Magnetic Grille

A redesigned powder-coated magnetic steel grille eliminates the bezel for a clean, seamless look that blends effortlessly into any space.

Features:

• 6.5” Polypropylene woofer
• 1” Pivot Silk Dome tweeter
• Patented Sky Hook™ Cinch by Swarm Installation System
• Bezel-Free Magnetic Grille

Specifications:

• Frequency Range: 77Hz - 20kHz +/- 3dB
• High Frequency Driver: 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
• Low Frequency Driver: 6.5” (16.51cm) Polypropylene Woofer
• Sensitivity: 91 dB @ 2.83V / 1m
• Coverage Angle: 100°
• Power Handling: 50W RMS / 200W RMS
• Impedance: 8 Ohm Compatible
• Enclosure Material/Type: ABS / Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
• Mounting Depth: 4.34” (11.03cm)
• Cutout Dimensions: 8.3” (21.1cm)
• Product Weight: 7 lbs (3.18kg)
• Included in Box: Round Magnetic Grille
• Install Kit: IK-650-C II (Sold Separately)
• Fire Rated Enclosure: ME-650-C (Sold Separately)
• Built From: 2017
