Descriptions

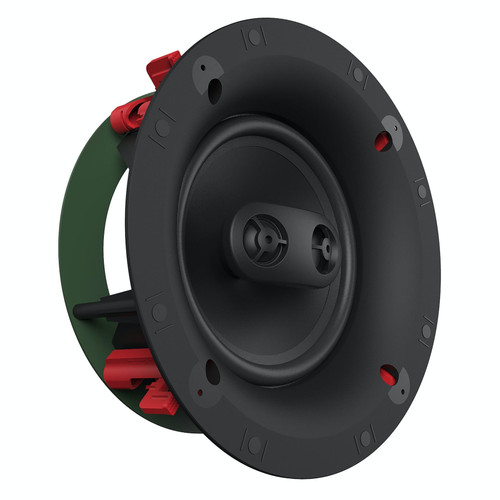

About: Klipsch DS-160CSM 6.5" In-Ceiling Speaker with 1" Silk Dome Tweeter

Get the Klipsch Signature Horn-Loaded performance at an incredible value. The DS-160CSM features a 6.5” Polypropylene woofer and dual 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Stereo Sound from a Single Speaker

Engineered with the same acoustic voicing and design principles as Klipsch’s premium architectural speakers, the Designer Series DS-160CSM delivers true Klipsch power and performance. Featuring a 6.5” dual voice coil polypropylene woofer and dual .75” silk dome tweeters, it produces rich, dynamic stereo sound from a single speaker—perfect for spaces where installing two speakers isn’t practical.

Patent-Pending SkyHook™ Tool-Free Installation System

The innovative SkyHook™ system automatically engages the dog legs when the speaker is inserted into the cutout hole, applying a preset clamping force. This prevents overtightening while reducing installation time by up to 75%, making setup fast and hassle-free.

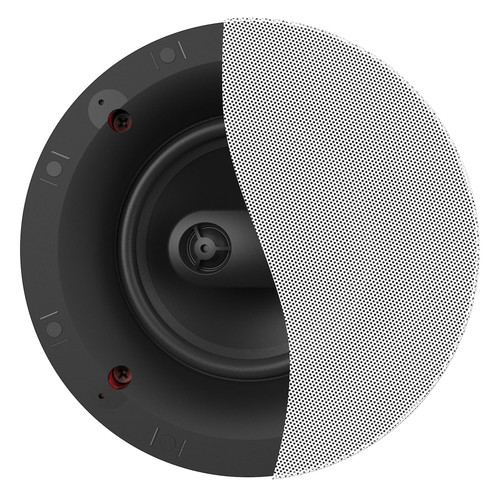

Bezel-Free Magnetic Grille

A redesigned, powder-coated magnetic steel grille eliminates the bezel for a clean, modern look. The paintable finish allows seamless integration into any room décor.

Features:

• 6.5” Polypropylene woofer
• Dual 1” Silk Dome tweeter
• Patented Sky Hook® Tool-Free Installation System
• Bezel-Free Magnetic Grille

Specifications:

• Frequency Range: 77Hz - 20kHz ±3dB
• High-Frequency Driver: Dual .75" (1.9cm) Silk Dome Tweeters
• Low-Frequency Driver: 6.5” (16.51cm) Dual Voice Coil Polypropylene Woofer
• Sensitivity: 91 dB @ 2.83V / 1m
• Coverage Angle: 160°
• Power Handling: 50W RMS / 200W RMS
• Impedance: 8 Ohm Compatible
• Enclosure Material/Type: ABS / Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
• Mounting Depth: 4.34” (11.03cm)
• Cutout Dimensions: 8.3” (21.1cm)
• Product Weight: 7 lbs (3.18kg)
• Included in Box: Flat Paintable Magnetic Grille
• Install Kit: IK-650-C II (Sold Separately)
• Fire Rated Enclosure: ME-650-C (Sold Separately)
• Built From: 2017
