Descriptions

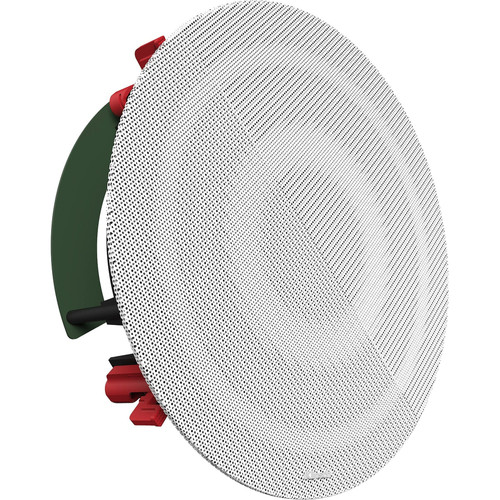

About: Klipsch DS-180CDT 8" In-Ceiling Speaker with 1" Silk Dome Tweeter

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-180CDT features an 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Horn-Loaded Performance

Built on Klipsch’s renowned Tractrix® horn technology, the Designer Series delivers powerful, detailed sound with exceptional clarity. The DS-180CDT features an 8” polypropylene woofer paired with a 1” silk dome tweeter mounted to a round Tractrix® horn, producing dynamic, room-filling audio ideal for distributed audio, home theater, or 2-channel systems.

Patent-Pending SkyHook™ Tool-Free Installation System

The innovative SkyHook™ installation system automatically engages the dog legs when the speaker is inserted into the cutout, applying a preset clamping force. This eliminates the risk of overtightening while significantly reducing installation time—by up to 75%.

Controlled Dispersion Technology™ (CDT)

CDT allows both the tweeter and woofer to be angled up to 15° in any direction, ensuring optimal on-axis sound performance across a wide range of listening positions.

Bezel-Free Magnetic Grille

A redesigned, powder-coated magnetic steel grille offers a clean, modern look with seamless integration into any space. The paintable finish allows it to blend perfectly with your ceiling.

Features:

• 8” Pivot Polypropylene woofer
• 1” Pivot Silk Dome tweeter
• Patented Sky Hook® Tool-Free Installation System
• Bezel-Free Magnetic Grille

Specifications:

• Frequency Range: 73Hz – 20kHz ±3dB
• High Frequency Driver: 1” (2.54cm) Silk Dome Tweeter with round Tractrix® Horn
• Low Frequency Driver: 8” (20.32cm) Polypropylene Woofer
• Sensitivity: 94 dB @ 2.83V / 1m
• Coverage Angle: 100°
• Power Handling: 50W RMS / 200W Peak
• Impedance: 8 Ohm Compatible
• Enclosure Type: ABS / Infinite Baffle
• Finish: Black Baffle/Frame with White Paintable Grille
• Product Dimensions: 10.75” W x 10.75” H x 4.5” D (27.3cm x 27.3cm x 11.5cm)
• Mounting Depth: 4.45” (11.3cm)
• Cutout Dimensions: 9.8” (24.9cm)
• Product Weight: 7.4 lbs (3.36kg)
• Included in Box: Flat Paintable Magnetic Grille
• Install Kit: IK-800-C II (Sold Separately)
• Fire Rated Enclosure: ME-800-C (Sold Separately)
• Built From: 2017
