About: Klipsch KDA-1000 4-Channel DSP Amplifier

For outdoor systems requiring more output, the Klipsch KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single-rack unit solution - all completely customizable through the web-based DSP menu.

High Performance Power Platform

The Klipsch KDA Series DSP Amplifiers offer legendary Klipsch power and performance in a sleek, high-tech, 1 rack unit solution. The KDA-1000 offers 1000W of Class G/H Power, delivering clean, dynamic performance in any type of install.

70V / 100V / Low Impedance Compatibility

From small residential systems to massive commercial installs, the Klipsch KDA-1000 is designed for maximum install flexibility — offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independent from channel to channel, allowing installers to run one channel low impedance and another at 70V/100V for complete customization and system optimization.

Flexible I/O

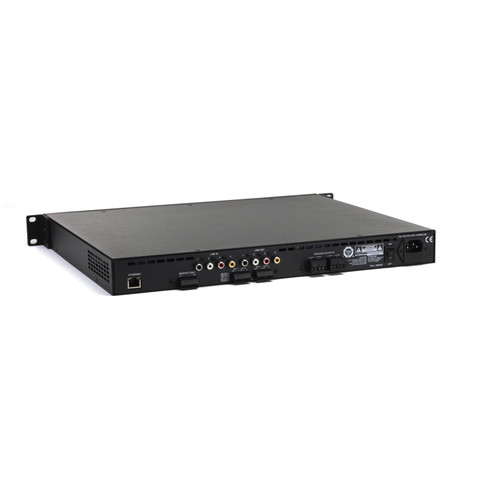

The KDA-1000 features fully matrixed 4x4 I/O with balanced Phoenix Connector Inputs and Phoenix Speaker Outputs capable of accepting up to 12 gauge wire. For non-balanced connections, RCA Inputs and Outputs (Throughs) are also included, making it one of the most versatile power solutions available.

State-Of-The-Art DSP Control And Set-Up

All I/O, impedance, and acoustic settings are fully matrixed and customizable through a web-based DSP interface. Simply connect a laptop to the RJ-45 port, enter the assigned IP address into a web browser, and access the intuitive control panel. Features include password-protected channel assignments, gain control, EQ, and limiting. The DSP also provides presets for a wide range of Klipsch speakers, optimizing acoustic performance and power handling with a single click. Wireless access via tablet, smartphone, or computer is also available when connected to a network router.

Features:

• 1000W Total System Power (4 x 250W)
• High performance power platform
• 70V / 100V / Low Impedance Compatibility
• Flexible I/O
• State-of-the-art DSP control and set-up

Specifications:

• Part Numbers: 120V: 1063258 / 230V: 1063261
• Amplifier Type: High Efficiency Class G/H
• Amplifier Power: 1000W Total System Power (4 x 250W Per Channel)
• Inputs: Balanced: 4 x Phoenix Line Level (up to 12 AWG wire) / Unbalanced: 4 x RCA Line Level
• Outputs: 4 x Phoenix Speaker Level (up to 12 AWG wire) / 4 x RCA Line Level (Throughs)
• Input Sensitivity: 750mV Balanced, 0dBU
• Input Impedance: Balanced 40k
• THD: <1% @ Rated Output
• Signal-To-Noise: -100dB Below Rated Output
• Enclosure Material: Front Face: ABS Plastic / Case: Machine Formed Steel
• Rack Unit: 1RU
• Product Dimensions: 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)
• Product Weight: 15 lbs (6.82 kg)
• Mounting: Removable 1RU Rack Ears, Removable Rubber Feet
• Built From: 2016
