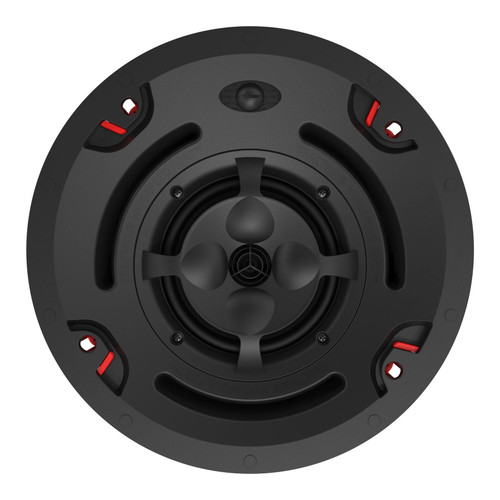

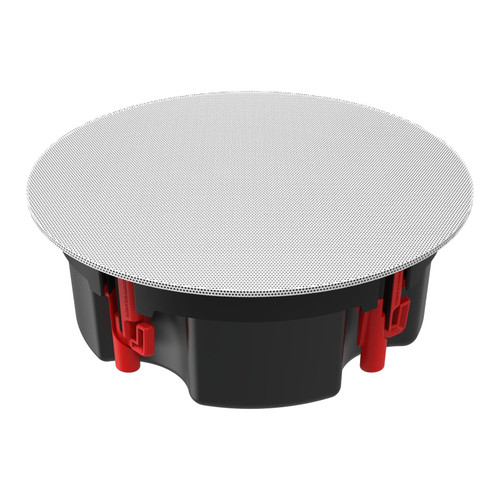

Klipsch PIC-525-T-SC BW 5.25" In-Ceiling Speaker with 1" Tweeter, Transformer and Short Can

Klipsch

Klipsch PIC-525-T-SC BW 5.25" In-Ceiling Speaker with 1" Tweeter, Transformer and Short Can

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$629.00

SKU: PIC525TSCBW

UPC: 743878057652

Condition: New

Availability: Special Order - Usually Ships in 3-5 Weeks

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: Klipsch PIC-525-T-SC BW 5.25" In-Ceiling Speaker with 1" Tweeter, Transformer and Short Can

Professional In-Ceiling (PIC) Series, offering a complete and durable solution for a wide range of commercial installations including hotels, restaurants, spas, retail, airports, universities and conference centers, hospitals and clinics, meeting rooms and more. This updated series, which replaces the IC Series, seamlessly integrates with our Residential (RSM) and Professional (PSM) Surface Mount lines, delivering the powerful and detailed sound that Klipsch is known for. With enhanced features like IPX5 ratings, SkyHook® Pro technology for fast tool-free installation, and versatile size options, the PIC Series is designed to make installations quicker and more reliable, while ensuring superior sound quality across any environment.

More Bass, Less Space With The All-new Tractrix® Hyperfold Port™

Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas, especially in this short can model.

Exclusive Patented Sky Hook® Pro System For Faster, Tool-free Installation

The Klipsch PIC-525-T-SC was engineered for once the hole is cut. After that, this tool-free installation is a breeze with the exclusive patented Sky Hook® Pro. Utilizing this new technology means you no longer need to worry if the screw gun is set to the correct torque (if you’re even using one). A simple click of four buttons and the PIC-525-T-SC is installed.

IPX5 Rated For Challenging Commercial Environments

Perfect for commercial projects around the globe, the Klipsch PIC-525-T-SC is IPX5 Rated. Your clients will rest easy knowing their new speakers will have maximum weather resistance for even the most challenging environments.

1” Titanium Compression Driver For Effortless, High-clarity Detail

Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the PIC-525-T-SC gives any space extra-wide coverage while providing even and consistent energy for your project.

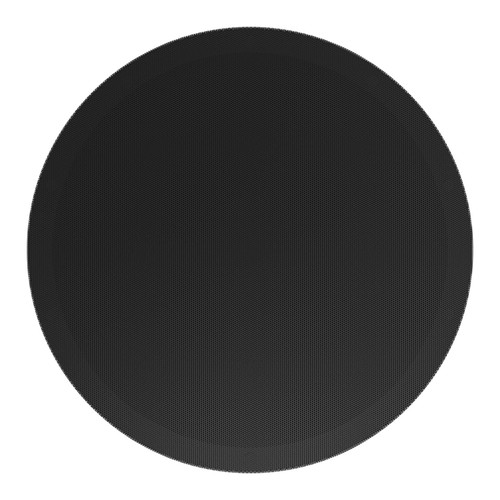

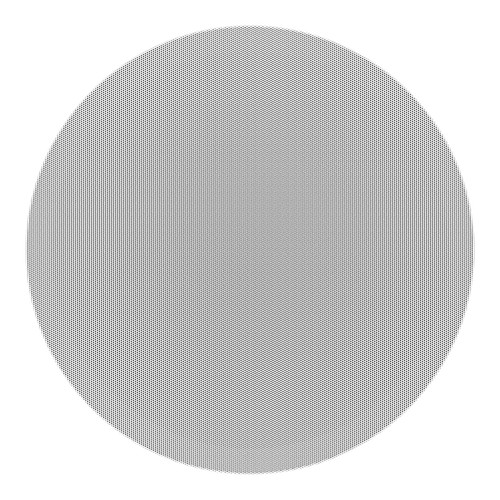

Black And White Paintable Grille Options Included

Meant to fit into any space, the Klipsch PIC-525-T-SC comes with both a black and white grille in the box.

Phoenix Connector For Simplified Installation

The PIC-525-T-SC employ a phoenix connector for quick and intuitive connection.

Specifications:

Frequency Response: 95Hz-20kHz +/- 4dB, 60Hz -10dB
Power Handling: 65 watts (16.7V) 55Hz-10kHz (260 watts peak)
Calc. Max. Cont. Output: 104dB
Sensitivity: 89dB
Coverage: 100° +/- 20° 1kHz-20kHz
Directivity Index: 7dB +/- 1.5dB 1kHz-20kHz
Nominal Impedance: 8 ohms 4.3 ohms at 175Hz minimum
Acoustic Crossover: 2kHz
Transducers:

5.25” woofer
1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge

Enclosure Material: All Weather Abs Plastic, Paintable; Metal Can
Enclosure Tuning: Vented via 3 folded Tractrix ports
Input Connectors: 4 pin euro block
Transformer Taps:

70V: 30W, 15W, 7.5W, 3.8W
100V: 30W, 7.5W, 3.8W
Bypass position: 8ohms nominal

UL Rating: UL2043, 1480A
Cutout Dimension: 10.125"
Mounting Depth: 3.875"
Overall Depth: 4.438"
Overall Width: 11.25"
Thru Hole Width: 10"
Weight: 8 lbs
