Descriptions

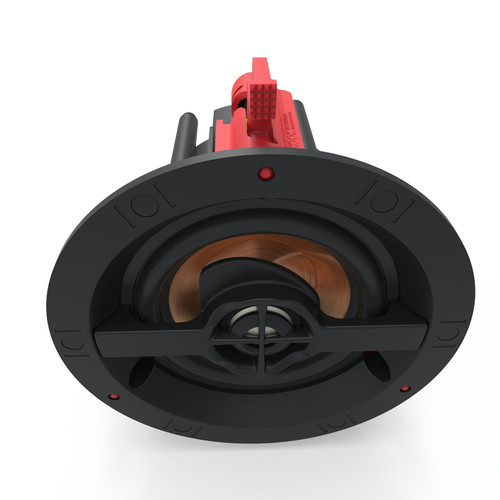

About: Klipsch PRO-14RC Pivot 3.5" In-Ceilling Speaker with 1" Aluminum Dome Tweeter

Utilizing a custom-designed tweeter bridge with “shark fin” and asymmetric dimples to diffuse standing waves, the PRO-14RC provides crisp and clear audio over a wider range from only a 4.9” overall grille footprint. The Sky Hook® patented Cinch by Swarm Installation System provides incredibly fast and secure installations saving both time and money. With both round and square flat magnetic grilles included in the box, the new PRO-14RC minimal footprint in-ceiling speaker provides installers the ideal distributed audio solution that even interior designers will love.

True Reference Acoustics in a Small Package

Using the same acoustic components and design as the highly acclaimed Reference box speaker line, the Professional Reference Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Klipsch Reference series. With a 3.5” IMG woofer and a .75” aluminum dome tweeter, the Pro-14C brings dynamic, powerful, detailed Klipsch Reference sound to your distributed audio or home theater system in a small aperture in-ceiling package.

Patent-Pending Skyhook™ Tool-Free Installation System

The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

All New, Bezel-Free Magnetic Grille

A completely redesigned powder-coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Round and Square Grilles Included

Architectural speakers not only need to sound great, but blend in seamlessly with even the most luxurious interior designs. The Professional Series Reference Premiere in-ceiling speakers include both round and square grilles in the box, so they look great in any space right out of the box.

PVC Paint Shield Included

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Features:

• 3.5" Injection Molded Graphite (IMG) Woofer
• 1” Fixed Aluminum Dome FEA Optimized Tweeter
• Exclusive, modular Patented Sky Hook® Cinch by Swarm
• Bezel-Free square and round paintable magnetic grilles
• Magnetic paint shield
• Minimal footprint

Specifications:

• Frequency Range: 92Hz - 23kHz +/- 3dB
• High Frequency Driver: .75" (1.9cm) Aluminum Dome Tweeter
• Low Frequency Driver: 3.5" (8.89cm) IMG Woofer
• Sensitivity: 88 dB @ 2.83V / 1m
• Coverage Angle: 110°
• Power Handling: 30W RMS / 120W Peak
• Impedance: 8 Ohm Compatible
• Enclosure Material/Type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 4.86” W x 4.86” H x 4.5” D (12.3cm H x 12.3cm W x 11.3cm D)
• Mounting Depth: 4.34” (11.03cm)
• Cutout Dimensions: 4.25” (10.8cm)
• Product Weight: 4 lbs (1.8kg)
• Included in Box: Round Grille, Square Grille, Paint Shield
• Install Kit: IK-400-C (Sold Separately)
• Built From: 2017
