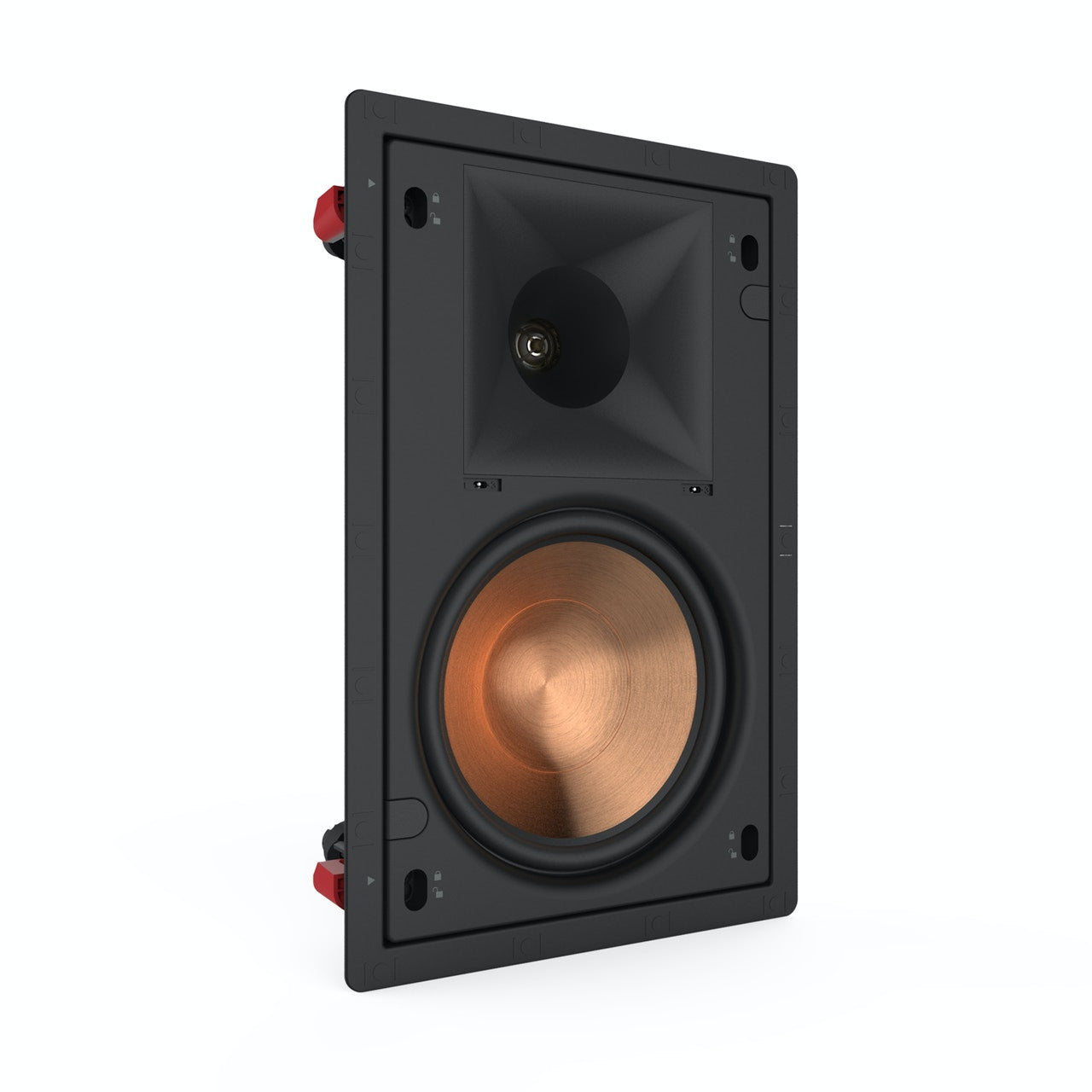

About: Klipsch PRO-180RPW 8" In-Wall Speaker

With an 8” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® horn, the PRO-180RPW brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.

True Reference Premiere Acoustics

Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series. With an 8” Cerametallic Woofer and a 1” Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn, the Pro-180RPW brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.

SecureFit™ Installation System

The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing, which can lead to breaking the dog leg or cracking the drywall. The speaker module is then screwed to the bezel (using machine screws instead of traditional drywall screws) for a more robust, acoustically stable installation than the competition.

All New, Bezel-Free Magnetic Grille

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

PVC Paint Shield Included

Also included is a magnetic PVC Paint Shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Features:

• 8" Cerametallic Woofer
• 1" Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
• Exclusive, modular SecureFit™ Installation System
• Paintable, magnetic grille included

Specifications:

• Frequency Range: 52Hz - 23kHz +/- 3dB
• High Frequency Driver: 1" (2.54cm) Titanium Dome Tweeter mated to a composite coated Hybrid Cross Section Tractrix® Horn
• Low Frequency Driver: 8" (16.51cm) Cerametallic Woofer
• Sensitivity: 96 dB @ 2.83V / 1m
• Coverage Angle: 90° x 90°
• Power Handling: 50W RMS / 200W Peak
• Impedance: 8 Ohm Compatible
• Enclosure Material/Type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 10.16” W x 15.75” H x 4.0” D (25.8cm H x 40.0cm W x 10.1cm D)
• Mounting Depth: 3.9” (9.9cm)
• Cutout Dimensions: 14.8” H x 9.25” W (37.5cm H x 23.5cm W)
• Product Weight: 7.9lbs (3.6kg)
• Included in Box: Grille, Paint Shield
• Install Kit: IK-800-W (Sold Separately)
• Built From: 2017
