Descriptions

About: Klipsch PRO-24RW LCR Dual 3.5" In-Wall Speaker with 1" Aluminum Dome Tweeter

Featuring dual 3.5” Injection Molded Graphite (IMG) Woofer and 1” Fixed Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-24RW LCR brings incredible acoustics with the signature Klipsch sound. Featuring the Sky Hook® patented Cinch by Swarm Installation System, the PRO-24RW LCR provides incredibly fast and secure installations that save both time and money.

True Reference Acoustics In A Small Package

Using the same acoustic components and horn design as the highly acclaimed Klipsch Reference box speaker line, the Professional Reference Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Klipsch Reference series. With dual 4” IMG Woofers and a 1” Aluminum Dome Tweeter, the Pro-24RW LCR brings dynamic, powerful, detailed Klipsch Reference sound to your distributed audio or home theater system in a small aperture in-wall package.

Patent-Pending Skyhook™ Tool-Free Installation System

The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

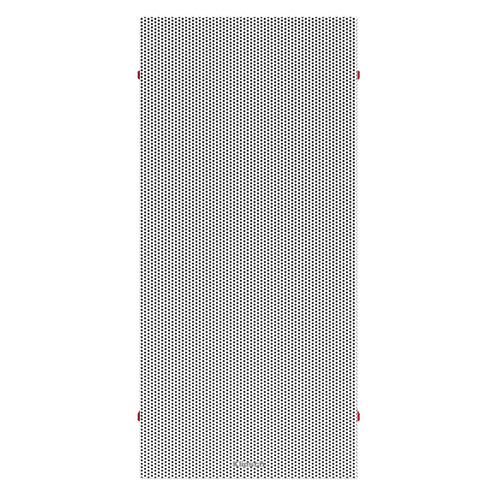

All New, Bezel-Free Magnetic Grille

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

PVC Paint Shield Included

Also included is a magnetic PVC Paint Shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Features:

• Dual 3.5” Injection Molded Graphite (IMG) Woofer
• 1” Fixed Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
• Exclusive, modular Patented Skyhook® Installation System
• Bezel-Free square and round paintable magnetic grilles
• Magnetic paint shield

Specifications:

• Frequency Range: 90Hz - 23kHz +/- 3dB
• High Frequency Driver: 1" (2.54cm) Aluminum Dome Tweeter
• Low Frequency Driver: Dual 4" (10.16cm) IMG Woofers
• Sensitivity: 89 dB @ 2.83V / 1m
• Coverage Angle: 90° x 90°
• Power Handling: 30W RMS / 120W Peak
• Impedance: 4 Ohm
• Enclosure Material/Type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 6.2” W x 13.3” H x 3.4” D (15.75cm H x 31.8cm W x 8.6cm D)
• Mounting Depth: 3.3” (8.3cm)
• Cutout Dimensions: 12.5” H x 5.4” W (31.75cm H x 13.7cm W)
• Product Weight: 4.5lbs (2.1kg)
• Included In Box: Flat Magnetic Grille, Paint Shield
• Install Kit: IK-402-W (Sold Separately)
• Built From: 2017
