Descriptions

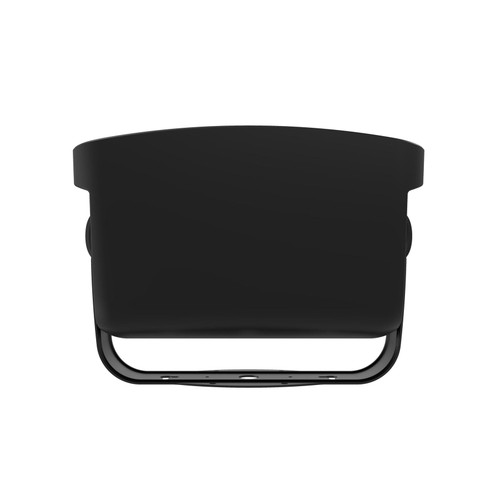

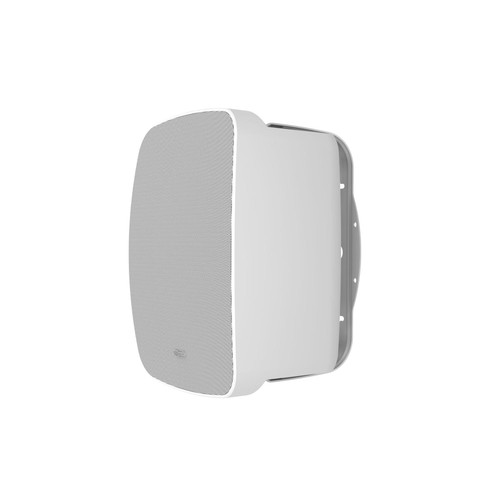

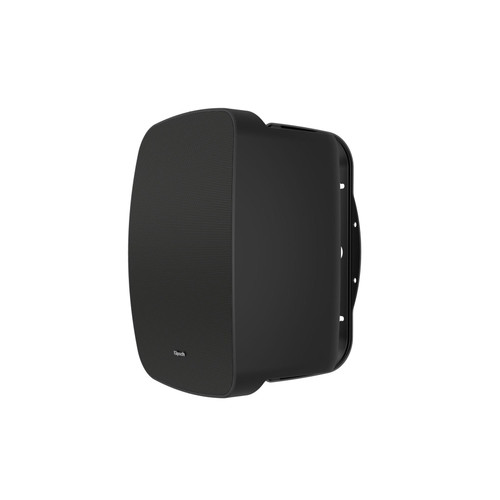

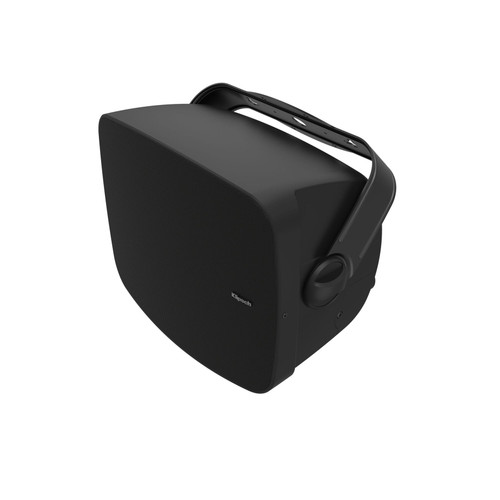

About: Klipsch PSM-650T Full-Range 6.5” Indoor / Outdoor Professional Surface Mount with Transformer

The Klipsch PSM-650T is a surface-mount speaker known for its robust, crystal-clear audio, perfect for enhancing the ambiance of indoor or outdoor spaces, including covered patios and outdoor bars. With a sleek design that withstands moist environments, it offers both visual appeal and superior sound quality. Whether for a party or a quiet evening, the PSM-650T takes your music experience to new heights.

More Bass, Less Space with the All-New Tractrix® Hyperfold Port™

Klipsch is all about high efficiency and low distortion. Building upon that legacy, Klipsch introduces the all-new patented Tractrix® Hyperfold Port™, engineered to extend port length for maximum bass power through a proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 Rated for Commercial Environments

Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-650-T is IPX6 rated. Your clients will rest easy knowing their new speakers are water-resistant and rainproof for even the most challenging commercial environments.

Multiple Tap Settings

The PSM-650-T includes a multi-tap transformer for 70V or 100V installations. There is also a bypass position that allows normal 8-ohm operation for installations that do not require a transformer.

Set Screws on Grille

Included set screws on each grille ensure a secure fit between the speaker and grille while making sure the grilles stay attached to the enclosures regardless of the environment.

1” Titanium Compression Driver for Effortless, High-Clarity Detail

Klipsch outperforms the competition with its all-new 1” titanium-loaded floating driver bridge with wide-dispersion phase plug. Using patented Mumps technology, the PSM-650-T delivers extra-wide coverage while providing even and consistent energy throughout the listening area.

Phoenix Connector for Simplified Installation

The PSM-650-T employs a Phoenix connector for quick, secure, and intuitive connections, making installation fast and straightforward for professional applications.

Features:

• More bass, less space with the all-new Tractrix® Hyperfold Port™
• 1” Titanium Compression Driver for effortless, high-clarity detail
• IPX6 Rated for even the most challenging commercial environments
• Multi-tap transformer for 70 or 100 volt installations, includes bypass position
• Set screws on grille
• Phoenix Connector for simplified installation
• Paintable, rust-proof aluminum grille

Specifications:

• Frequency Response: 56Hz–20kHz +/- 4dB, 46Hz -10dB
• Power Handling: 80W (19V) 50Hz–10kHz (320W Peak)
• Calculated Maximum Continuous Output: 106dB
• Sensitivity: 90dB
• Coverage: 100° +/- 20° (900Hz–20kHz)
• Directivity Index: 7dB +/- 1.5dB (800Hz–20kHz)
• Nominal Impedance: 8 Ohms (4.5 Ohms Minimum at 160Hz)
• Acoustic Crossover: 2kHz
• Transducers:
• 6.5” Woofer
• 1” Titanium Compression Driver on a K-1200M Horn/Tweeter Bridge
• Enclosure Material: All-Weather ABS Plastic, Paintable
• IP Rating: IPX6
• Enclosure Tuning: Vented via Three Folded Tractrix® Ports
• Input Connectors: 4-Pin Euroblock
• Transformer Taps:
• 70V: 60W, 30W, 15W, 7.5W
• 100V: 60W, 30W, 7.5W
• Bypass Position: 8 Ohms Nominal
• Dimensions (With Bracket): 12.81” (326mm) x 10.19” (259mm) x 7.57” (193mm)
• Bracket Depth: 9.19” (234mm)
• Weight: 11.25 lbs (5.11kg)

What's in the Box:

• Commercial 70V/100V 2-way speaker (black)
• Mounting bracket (installed)
• 4-Pin Euroblock connector (installed)
• Two 6mm machine screws
• Owner's manual
