Descriptions

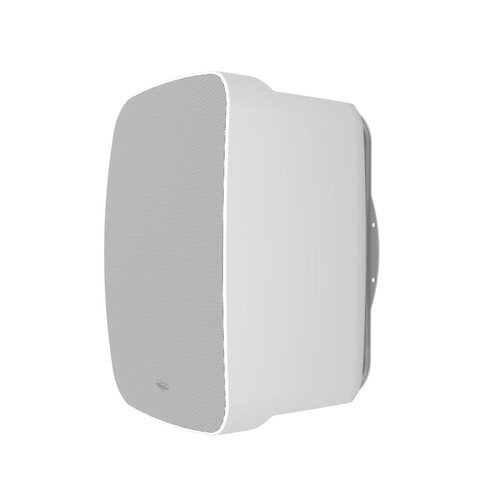

About: Klipsch PSM-800T Full-Range 8” Indoor / Outdoor Professional Surface Mount with Transformer

The Klipsch PSM-800T is a professional-grade speaker designed for diverse environments and engineered for sound reinforcement applications like concerts and conferences. With its rugged construction and premium materials, it ensures durability and longevity. Ideal for large events or professional audio systems, the PSM-800T offers versatility and superior sound reproduction.

More Bass, Less Space With The All-New Tractrix® Hyperfold Port™

Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via a proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 Rated For Commercial Environments

Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-800-T is IPX6 rated. Your clients will rest easy knowing their new speakers will be water-resistant and rainproof for the most challenging commercial environments.

Multiple Tap Settings

The PSM-800-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.

Set Screws On Grille

The included set screws on each grille ensure a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.

1” Titanium Compression Driver For Effortless, High-Clarity Detail

Klipsch outperforms the competition with the all-new 1” titanium-loaded floating driver bridge with wide dispersion phase plug. Using patented Mumps technology, the PSM-800-T gives any space extra-wide coverage while providing even and consistent energy for your project.

Phoenix Connector For Simplified Installation

The PSM-800-T employs a Phoenix connector for quick and intuitive connection.

Features:

• More bass, less space with the all-new Tractrix® Hyperfold Port™
• 1” Titanium Compression Driver for effortless, high-clarity detail
• IPX6 Rated for even the most challenging commercial environments
• Multi-tap transformer for 70 or 100 volt installations, includes bypass position
• Set screws on grille
• Phoenix Connector for simplified installation
• Paintable, rust-proof aluminum grille

Specifications:

• Frequency Response: 52Hz–20kHz +/- 4dB, 44Hz -10dB
• Power Handling: 100W (21V) 50Hz–10kHz (400W Peak)
• Calculated Maximum Continuous Output: 109dB
• Sensitivity: 92dB
• Coverage: 100° +/- 20° (1kHz–20kHz)
• Directivity Index: 7dB +/- 1.5dB (800Hz–20kHz)
• Nominal Impedance: 8 Ohms (4.2 Ohms Minimum at 150Hz)
• Acoustic Crossover: 2kHz
• Transducers:
• 8” Woofer
• 1” Titanium Compression Driver on a K-1200M Horn/Tweeter Bridge
• Enclosure Material: All Weather ABS Plastic, Paintable
• IP Rating: IPX6
• Enclosure Tuning: Vented via Three Folded Tractrix® Ports
• Input Connectors: 4-Pin Euroblock
• Transformer Taps:
• 70V: 100W, 50W, 25W, 12.5W
• 100V: 100W, 50W, 25W
• Bypass Position: 8 Ohms Nominal
• Dimensions (With Bracket): 15.5” (394mm) x 12” (305mm) x 9.31” (237mm)
• Bracket Depth: 11.12” (283mm)
• Weight: 15.75 lbs (7.15kg)

What's in the Box:

• Commercial 70V/100V 2-way speaker (black)
• Mounting bracket (installed)
• 4-Pin Euroblock connector (installed)
• Two 6mm machine screws
• Owner's manual
