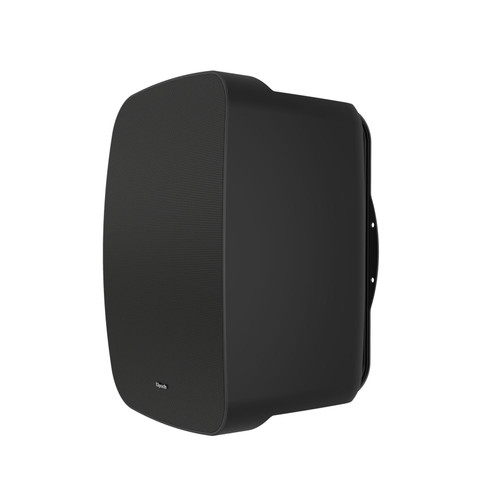

he Klipsch RSM-800 is a versatile loudspeaker, delivering robust and clear audio across various settings. Ideal for both indoor and outdoor use, it’s built to endure harsh weather conditions. Whether for a home system or a commercial space, the RSM-800 provides an exceptional audio experience.

More Bass, Less Space With The All-New Tractrix® Hyperfold Port™

Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

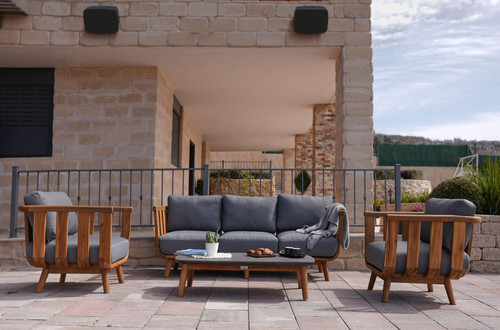

IPX5 Rated For Residential Environments

Perfect for indoor and outdoor residential installations around the globe, the Klipsch RSM-800 is IPX5 rated. Your clients will rest easy knowing their new speakers will be water-resistant and rainproof for the most challenging residential environments.

Set Screws On Grille

The included set screws on each grille ensure a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.

1” Titanium Compression Driver For Effortless, High-Clarity Detail

Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the RSM-800 gives any space extra-wide coverage while providing even and consistent energy for your project.

Dual 5-Way Binding Post For Versatile Installation

The RSM-800 employs dual 5-way binding posts for versatile connection.

Features:

• Equipped with a 8-inch woofer and a 1-inch titanium compression driver, delivering a powerful bass and crystal-clear sound.
• Designed for both indoor and outdoor use, boasting an IPX5 rating for water resistance and durability in challenging weather conditions.
• Features the patented Tractrix® Hyperfold Port™, a unique design that extends the port length for enhanced bass power.
• Offers versatile connection options with its dual 5-way binding posts.
• The grilles feature set screws for a secure fit, giving you peace of mind.
• Its robust construction ensures long-lasting performance in various environments.

Specifications:

• Frequency Response 1: 52Hz-20kHz +/- 4dB, 44Hz -10dB
• Power Handling 2: 100 watts (21V) 50Hz-10kHz (400 watts peak)
• Calc. Max. Cont. Output 3: 109dB
• Sensitivity 4: 92dB
• Coverage: 100° +/- 20° 1kHz-20kHz
• Directivity Index: 7dB +/- 1.5dB 800Hz-20kHz
• Nominal Impedance: 8 ohms 4.2 ohms at 150Hz minimum
• Acoustic Crossover: 2kHz
• Transducers:
• 8” woofer
• 1” titanium compression driver, on a K-1200M horn/tweeter bridge
• Enclosure Material: All Weather ABS Plastic, Paintable
• IP Rating: IPX5
• Enclosure Tuning: Vented via 3 folded Tractrix ports
• Input Connectors: Dual 5-way binding post
• Dimensions: 15.5” x 12" x 9.31" (394 x 305 x 237mm)
• Dimensions With Bracket: 15.5” x 12" x 11.12” (394 x 305 x 283mm)
• Weight 15.75 lbs (7.15kg)

What's in the Box:

• 2 Outdoor loudpeakers (white)
• 2 Grilles (pre-installed)

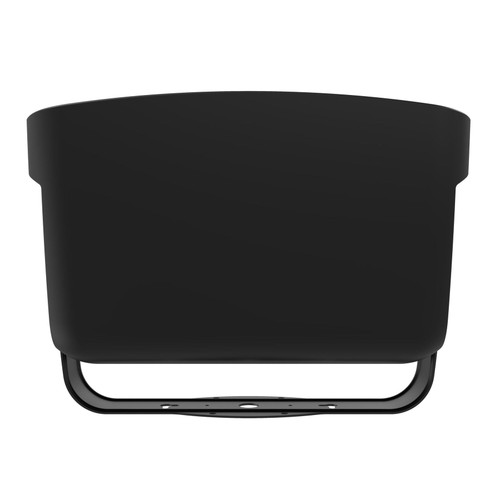

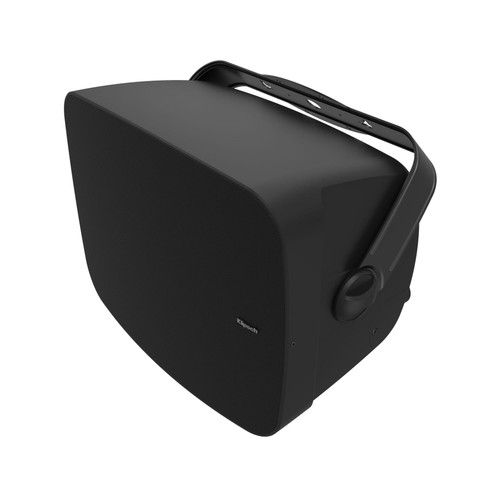

• 2 Mounting brackets (pre-installed)
• 4 Bracket knobs (pre-installed)
• Four 6mm screws
• Owner's Manual

Note:

• 1 1m, half space, anechoic
• 2 AES standard, continuous pink noise 50hz-10kHz, 6dB peaks
• 3 Calculated at 1m at power handling power input
• 4 SPL at 1m half space, anechoic with 2.83V pink noise input
