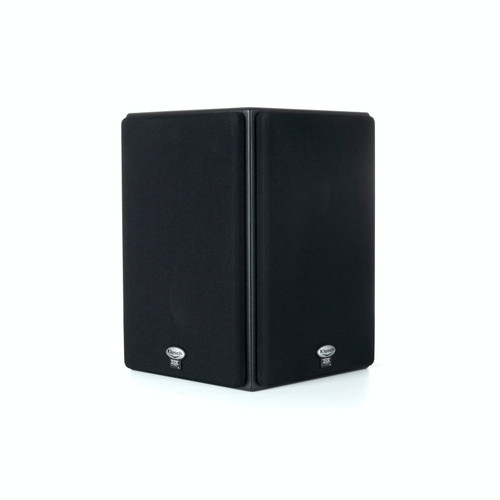

About: Klipsch THX-5000-SUR THX Ultra2 Series Dual 5.25" Surround Speaker - Pair

As part of the THX® Ultra2 family, the KS-525-THX surround loudspeaker with Klipsch Wide Dispersion Surround Technology (WDST) brings a new dimension of reality to home theater by using the same high-performance technology as the Klipsch professional cinema systems.

The Thx-5000-SUR Is a Thx® Ultra2 Certified Loudspeaker

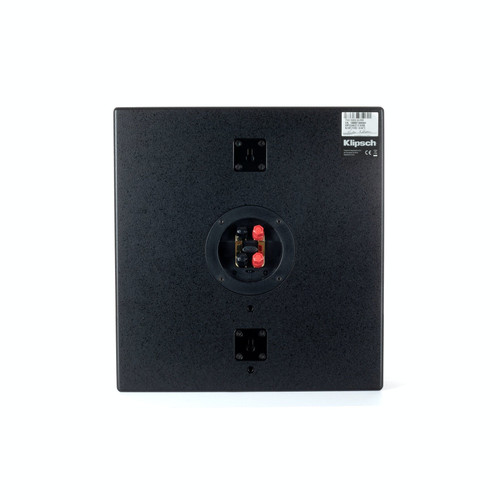

It was designed for high performance 5.1-, 6.1-, and 7.1-channel home theaters. It is a great choice for any home theater or home-theater/music system that demands superior sound and high output capability. The speaker’s compact sealed enclosure maximizes installation flexibility. Integrated into the back panel are vertically aligned keyholes for wall mounting as well as 1/4”-20 threaded inserts compatible with any high-quality wall/ceiling speaker mount rated for 20 lbs or higher loads.

The Thx-5000-SURUses Klipsch Wide Dispersion Surround Technology (Wdst™)

This enables it to deliver a unique combination of diffusion and coverage, yielding the benefits of both diffuse- and direct-radiating surround speakers with the drawbacks of neither. Listeners enjoy the deep, enveloping surround sound field characteristic of diffuse-radiating designs together with the precise localization of specific effects typically provided only by direct-radiating models.

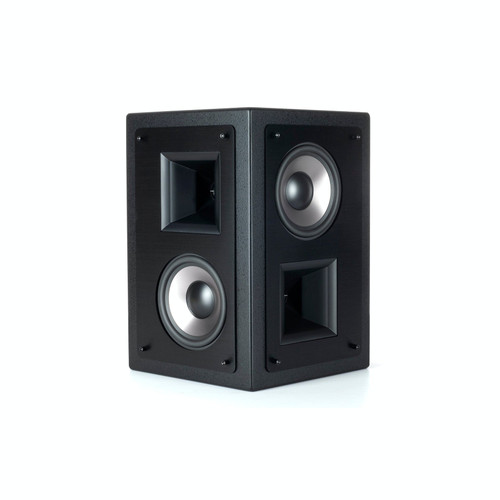

The WDST array comprises two 1-inch titanium-dome compression driver tweeters loaded by 5-inch square 90° x 60° Tractrix® horns and two 5.25-inch Cerametallic™ cone woofers. Each woofer/tweeter set is on an angled baffle facing opposite the other, with the tweeters on a diagonal to one another to minimize interference between their outputs. The tweeter is the same as used in the THX-6000-LCR and THX-5000-LCR speakers, and the woofer is the same as used in the THX-5000-LCR, ensuring a seamlessly cohesive sound field from front to rear.

Construction Is to the Highest Standard

With premium components throughout to ensure sonic purity, consistency, and reliability.

Features:

• Two 5.25-inch Cerametallic™ woofers
• Dual 5-inch square Tractrix® Horn tweeters
• Top-of-the-line internal wiring

Specifications:

• Frequency Response: 80Hz – 20kHz ± 3dB
• Sensitivity: 96dB @ 2.83 Volts / 1 Meter
• Nominal Impedance: 8 Ohms Compatible
• HF Crossover: 2100Hz
• Power Handling: 100 Watts Maximum Continuous (400 Watts Peak)
• Enclosure Type: Sealed
• Enclosure Material: Medium Density Fibreboard Construction (MDF)
• Tweeter: Two 1” (2.5cm) Magnetically Shielded, Titanium Dome Compression Drivers with Neodymium Magnet Structures
• High Frequency Horn: 5” Square 90° x 60° Tractrix® Horns
• Woofer: Two 5.25” (13.3cm) Magnetically Shielded, Cerametallic™ Cone, Cast Aluminium Frame Drivers
• Input Connections: Two Sets of Binding Post Speaker Terminals (Connected via Brass Strap Jumpers)
• Dimensions (H  x W x D): 13.75” x 13” x 8.5” (35 x 33 x 21.6 cm)
• Weight: 20 lbs (9.1kg)
• Finish: Galaxy Black Cabinet with Black Anodized Aluminum Fascia
• Mounting: 2-Bolt Pattern 1/4”-20 Thread
