Lewitt Audio

Lewitt Audio DTP 640 REX Duel-Element Instrument Microphone

$519.00
$499.99
SKU:
DTP640REX
Condition:
New
Availability:
Special Order - Usually Ships in 3-5 Days
Shipping:
Calculated at Checkout

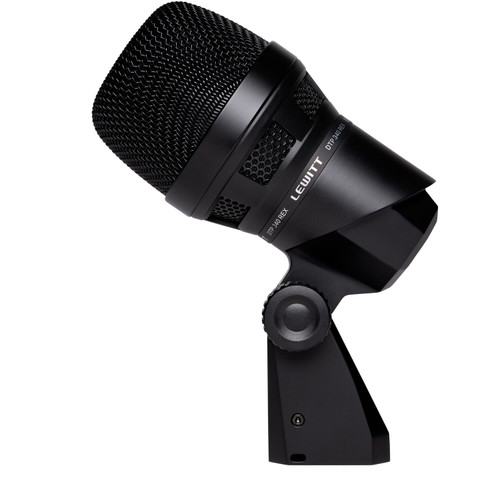

Lewitt Audio DTP 640 REX Duel-Element Instrument Microphone

$519.00
$499.99

About: Lewitt Audio DTP 640 REX Duel-Element Instrument Microphone

Your Mic for Double-Power Kick Drum Sound.

The DTP 640 REX is a dual-element microphone specifically designed to capture the sound of your drums and percussion instruments. It features two phase-aligned capsules, a condenser and a dynamic one. You can also switch between three sounds for more flexibility in studio and live applications.

Two Capsules for the Best of your Source.

We put two phase-aligned microphones in a single housing.  The dynamic side ensures accurate attack reproduction of the kick drum, while the condenser element captures the drum's low end. Each element has a dedicated output. This enables you to shape the kick drum sound in unique ways.

Cuts a Good Figure on your Drums and Bass.

With the DTP 640 REX, you get massive yet clear kick drum and bass recordings, in the studio and on stage. The capsule is specifically designed to replicate low frequencies with precision and punch.

This Mic is Built to Last.

The DTP 640 REX features a hardened hexagonal ruthenium-galvanized steel mesh grille and a solid die-cast metal body.

Features:

  • Dual-element instrument microphone
  • Dynamic and condenser capsule in one housing
  • Separate outputs for both capsules
  • For kick drum and other bass-heavy sources
  • Three switchable sound characteristics
  • Cardioid polar pattern

Specifications:

  • Type: Dynamic, moving coil, Condenser, permanently polarized
  • Acoustical operating principle: Pressure gradient transducer
  • Transducer Ø: 1.25" (31.7 mm)
  • Transducer Ø: 0.88" (22.4 mm)
  • Polar pattern: Cardioid
  • Sensitivity, = // = FFR
    • 0.4 mV/Pa (-69 dBV), dynamic
    • 2 mV/Pa (-54 dBV), condenser
  • Sensitivity, + // = Dynamic EFR
    • 0.4 mV/Pa, -69 dBV/Pa, dynamic
    • 2 mV/Pa, -54 dBV/Pa, condenser
  • Sensitivity, + // + Dual EFR: Condenser and dynamic matched at 1 mV/Pa, -60 dBV
  • Self-noise: 28 dB (A)
  • Max. SPL for 0.5 % THD: 150 dBSPL, 0 dB attenuation
  • Dynamic range of mic. amp. (condenser): 122 dB
  • Pre-attenuation pad
    • 0 dB
    • -10 dB
    • -20 dB
  • Rated impedance dynamic: 500 Ω
  • Rated impedance condenser: 200 Ω
  • Supply voltage: 48 V ± 4 V
  • Current consumption: 2 mA
  • Connector: Gold plated 3-pin and 5-pin XLR
  • Cable: 1.5 m (4.95’) dual shielded Y-cable, 5-pin XLR into two 3-pin XLRs
  • Microphone dimensions: 2.8 dia. x 6.2" (71 dia. x 158 mm)
  • Microphone net weight: 755 g (27.3 oz)

What's in the Box:

  • Audio cable
  • Transport bag
