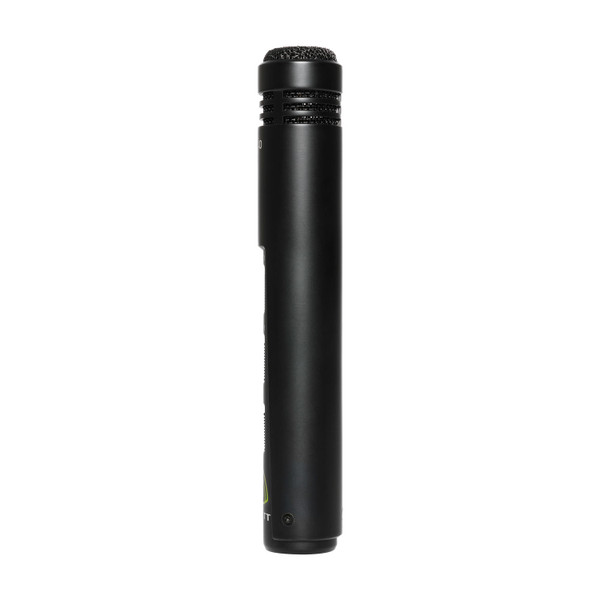

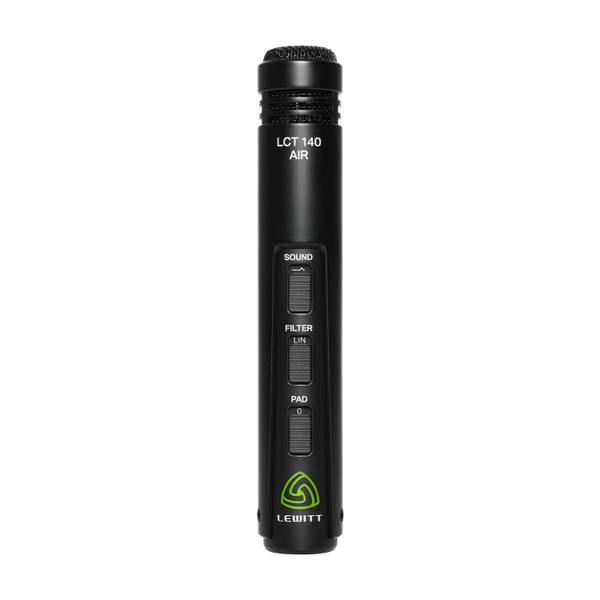

About: Lewitt Audio LCT 140 AIR Small Diaphragm Condenser Studio Microphone

AIR or FLAT? Two Switchable Sound Characteristics

AIR delivers an open, sparkling character. The right choice if you need great sound without spending time on post-production. FLAT provides a linear frequency response for “as-it-is” reproduction of drums, strings, acoustic guitars, and choirs. It is perfect if you aim for realistic sonic images. Check out the sound samples and hear for yourself.

Capture the Natural Sound of your Instruments

Transients are the DNA of your instrument's sound. To retain the natural musicality of your instruments, the LCT 140 AIR delivers an excellent transient response. The natural characteristics of cymbals are captured accurately. In any case, you get a punchy yet warm reproduction of your instrument's unique sound.

Durable and Light Aluminum Housing

The LCT 140 AIR is very durable yet lightweight thanks to its CNC'ed aluminum housing. Positioning and setup become easy tasks.

Features:

• Small diaphragm condenser microphone
• Choose from two distinct sound characteristics
• Great for acoustic guitar and drums
• Excellent transient response
• Cardioid polar pattern

Specifications:

• Type: Condenser, permanently polarized
• Acoustical operating principle: Pressure gradient transducer
• Transducer Ø: 17 mm, 0.67 in
• Diaphragm: 3 micron gold sputtered Mylar
• Polar pattern: Cardioid
• Frequency range: 20 ... 20,000 Hz
• Sensitivity: 14.6 mV/Pa, -36.7 dBV/Pa
• Self-noise: 20 dB (A)
• Max. SPL for 0.5 % THD: 135 dBSPL
• Dynamic range: 115 dB (A)
• Pre-attenuation pad: 0 dB -12 dB
• Low-cut filter linear: 80 Hz (12 dB/oct)
• Internal impedance: 173 Ω
• Supply voltage: 48 V ± 4 V
• Current consumption: 7.2 mA
• Connector: Gold plated 3-pin XLR
• Microphone dimensions: 24 dia. x 140 mm, 0.9 dia. x 5.5 in
• Microphone net weight: 66 g (2.3 oz)

What's in the Box:

• Foam windscreen
• Microphone clip
• Transport bag
