Lewitt Audio

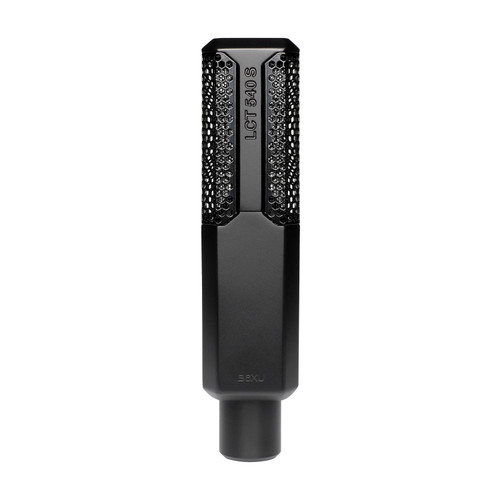

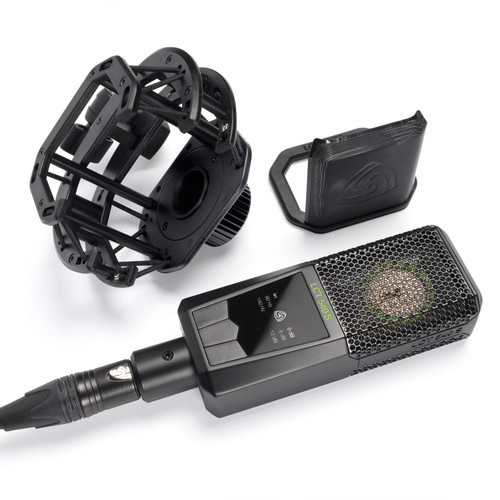

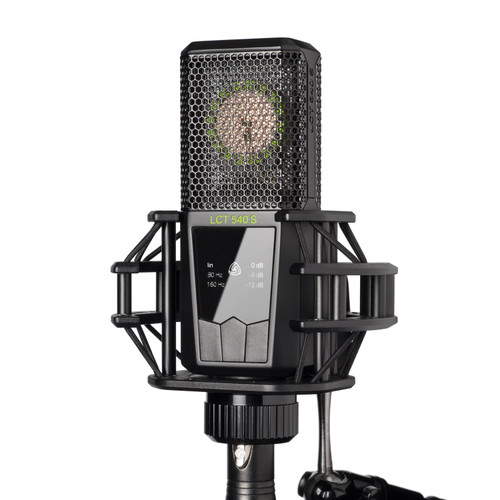

Lewitt Audio LCT540 S 1" True Condenser Studio Microphone

$1,029.00
$999.99
SKU:
LCT540S
Condition:
New
Availability:
Usually Ships In 1-2 Days
Shipping:
Calculated at Checkout

Lewitt Audio LCT540 S 1" True Condenser Studio Microphone

$1,029.00
$999.99

About: Lewitt Audio LCT540 S 1" True Condenser Studio Microphone

The Quietest Studio Microphone Ever Made

Our unique approach towards electronics and capsule design makes the LCT 540 S the quietest studio recording microphone. It lets you capture all the fine-grained details of your voice and instruments that usually wouldn’t even be audible.

The Studio Microphone without Audible Self-Noise

Our hearing threshold is very frequency-dependent. It is less sensitive to low and very high frequencies and most sensitive around 2 – 5 kHz. With our specific and unique approach toward circuit and capsule design, the LCT 540 S features self-noise below the hearing threshold across the entire frequency spectrum.

Fit for Extreme Processing

With its cutting-edge circuit and capsule design, the LCT 540 S  features an impressive dynamic range of 132 dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.

Perfect Match Technology

Every single LCT 540 S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540 S we will ever produce. This way, you can form a pair when you buy another one later on.

Features:

  • 1" true condenser studio microphone
  • Ultra-low noise microphone circuit
  • Fit for extreme processing
  • Low-cut filters and attenuation
  • Cardioid polar pattern

Specifications:

  • Type: Condenser, externally polarized
  • Acoustical operating principle: Pressure gradient transducer, externally polarized
  • Transducer Ø: 25.4 mm, 1 in
  • Diaphragm: 3 micron gold sputtered Mylar
  • Polar pattern: Cardioid
  • Frequency range: 20 ... 20,000 Hz
  • Sensitivity: 41 mV/Pa, -28 dBV/Pa
  • Self-noise: 4 dB (A)
  • Max. SPL for 0.5 % THD: 136 dBSPL, 0 dB attenuation
  • Signal / noise ratio: 90 dB (A)
  • Dynamic range: 132 dB (A)
  • Attenuation:
    • 0 dB
    • -6 dB
    • -12 dB
  • Low-cut filter:
    • linear
    • 80 Hz (6 dB/oct)
    • 160 Hz (6 dB/oct)
  • Internal impedance: 68 Ω
  • Supply voltage: 48 V ± 4 V
  • Current consumption: 3.6 mA
  • Microphone enclosure: Zinc die cast
  • Connector: Gold-plated 3-pin XLR
  • Microphone dimensions: 6.22" x 2.04" x 1.42" (158 x 52 x 36 mm)
  • Microphone net weight: 371 g (13.1 oz)

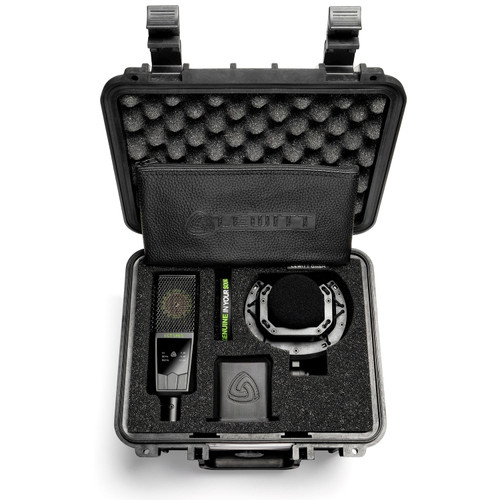

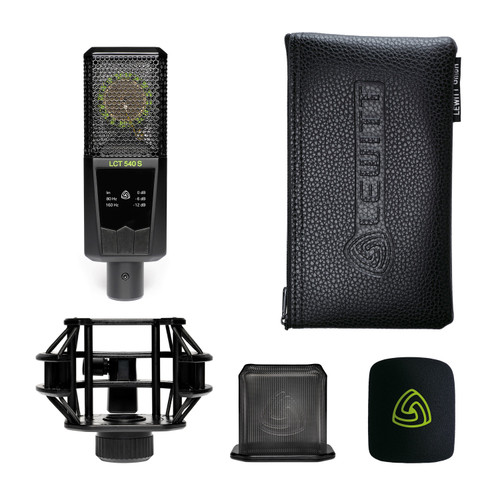

What's in the Box:

  • Shock mount
  • Magnetic pop filter
  • Foam windscreen
  • Transport bag
  • Transport
