Memphis Audio DBLOCKPGM Marine Grade Distribution Block with Fuse Protection

$109.95
$159.95
31% Off
SKU: DBLOCKPGM
Condition: New
Availability: Special Order - Usually Ships in 3-5 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Memphis Audio DBLOCKPGM Marine Grade Distribution Block with Fuse Protection

Run multiple accessories off with this convenient water resistant hub. Connect your amplifier and accessories to power and ground with fuse protection. This makes it safe and simple to add amplifiers, LED lights, electronic coolers, navigation, lighting and more to your boat or machine. The sealed unit features water resistant gaskets which prevent water intrusion into the terminals sealing every aspect of the unit.

Features:

  • IPX5 Marine grade construction
  • Compact distribution block design
  • Sturdy screw-in terminals
  • High temperature heavy duty transparent protective cover
  • PRIMARY DISTRIBUTION:
  • 2 – POS 0/4 gauge input
  • 2 – POS 4/8 gauge AFS fused output (sealed)
  • 1 – NEG 0/4 gauge input
  • 2 – NEG 4/8 Gauge output (sealed)
  • SECONDARY DISTRIBUTION:
  • POS 4 ATC Fused outputs

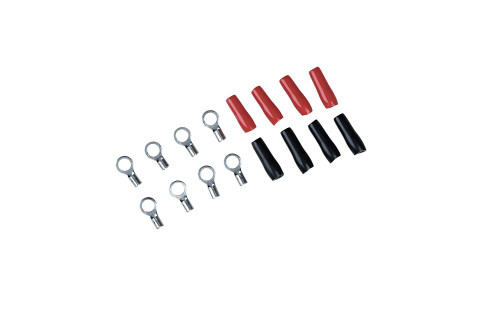

  • Ring terminal connections
  • Individual seal up to 14 gauge
  • NEG 4 outputs
  • Ring terminal connections
  • Individual seal up to 14 gauge
  • Also Included:
  • Extra ATC fuse holder location
  • Torx® Wrench included and can be stored on the inside of the cover

Specifications:

  • Inputs: Three 1/0 AWG x 2
  • Outputs: Four 4/8 AWG x 4
