Descriptions

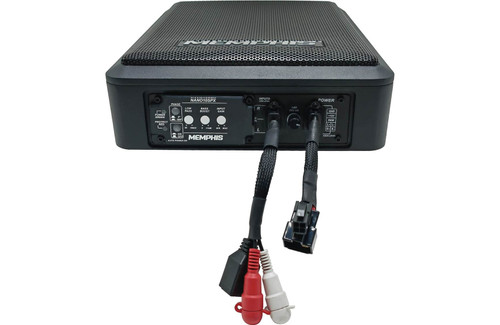

About: Memphis Audio NANO10SPX Nanoboxx 10" Compact Powered Subwoofer with 180W RMS Class D Amplifier

The all-new NANOBOXX delivers powerful, under-seat bass in tight spaces—now built to handle even the harshest environments. With an IP66 rating, it’s fully protected against water, dust, and debris. Sealed connectors and a weather-resistant control panel make it perfect for Jeeps, powersports, and any adventure-ready setup. Whether you’re off-roading or cruising in the rain, NANOBOXX brings big bass without compromise. One listen is all it takes to hear why it’s the best slim bass solution out there.

Features:

• Extremely Loud – Oversized passive radiator
• Maximum Efficiency – Class D amplifier built-in
• Sleek and Durable – Diecast aluminum enclosure
• Dial It In – Remote level control
• Easy Installation – High and low level inputs
• Maximum Bass – 0-14dB bass boost
• Clean Sound – Low pass and subsonic filter
• Added Protection – Thermal/short circuit/overload
• Light It Up! – RGB LED ground lighting

Specifications:

• RMS: 180W
• Max Power: 360W
• Total Harmonic Distortion: THD < 1%
• Signal To Noise Ratio: >90db
• Frequency Response: 20-150hz
• Low Pass Filter: 50-150hz
• Subsonic Filter: 20hz
• Subwoofer: 10” // 2 ohm
• Dimensions (L X W X H) In: 13.6 X 9.6 X 2.75

What's in the Box:

• Powered 10" underseat subwoofer with attached 4" power/ground harness and 6" RCA/remote harness
• Remote level control
• 12' Remote cable (RJ-25 connectors on both ends)
• 8" Power/ground harness
• 8" Speaker-level input harness
• 3 Mounting brackets
• Three 1" screws
• Two 1/2" screws
• Eight 5mm counter-sunk machine screws
• 8 Flat washers
• 8 Split lock-washers
• 2.5mm Allen key
• Owner's manual
